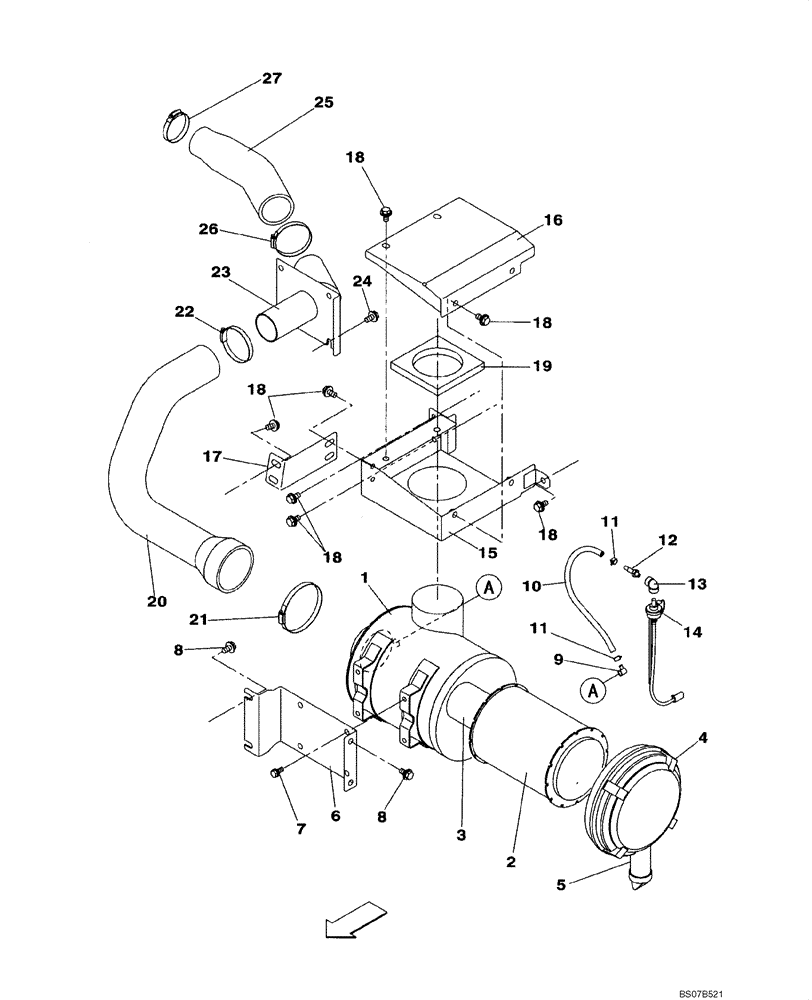

Запчасти Case CX240BLR (02-02A) - AIR CLEANER - WITH NOISE REDUCTION COVERS (02) - ENGINE

KRH11950

FILTER ASSY

Incl. 2 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

KBH0921

AIR FILTER

Outer

1шт.

3

KBH0922

AIR FILTER

Inner

1шт.

4

KBH0923

COVER ASSY

1шт.

5

KBH0924

VALVE

1шт.

6

KRH11940

SUPPORT

1шт.

7

166052A1

BOLT

4шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

9

KRH1237

ELBOW

1шт.

10

157777A1

HOSE

400 mm (15-3/4 in)

1шт.

11

165951A1

CLAMP

2шт.

12

KRH1236

SEAL

1шт.

13

165818A1

ELBOW

1шт.

14

KHH10330

SENSOR

1шт.

15

KRN14720

COVER

1шт.

16

KRN14730

COVER

1шт.

17

KRN14710

SUPPORT

1шт.

18

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

11шт.

19

KRH1570

SEAL

1шт.

20

KRH11980

AIR HOSE

1шт.

21

150545A1

COLLAR

1шт.

22

150902A1

COLLAR

1шт.

23

KRH11930

SUPPORT

1шт.

24

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

25

KRH10490

AIR HOSE

1шт.

26

150902A1

COLLAR

1шт.

27

150736A1

COLLAR

1шт.
