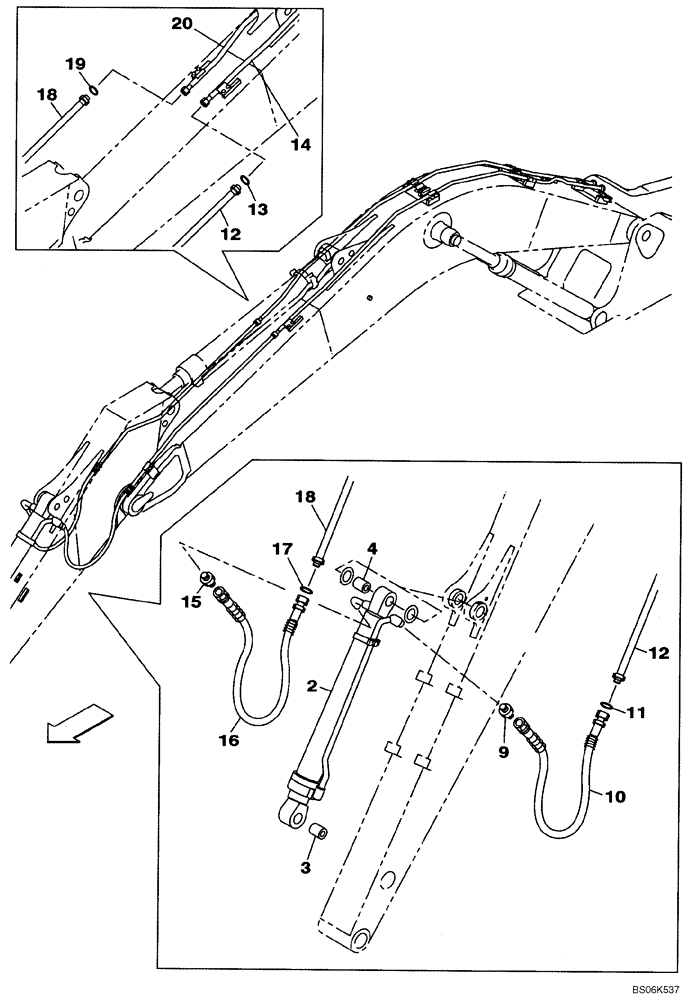

Запчасти Case CX240B (08-013) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - DIPPER (2.50 M) (08) - HYDRAULICS

2

KBV11040

BUCKET CYLINDER

Incl. 3, 4; See Figure 08-090

1шт.

2

KBV24080R

REMAN-HYD CYLINDER

CX240B CRAWLER EXCAVATOR TIER 3 (NA), BUCKET CYLINDER, DIPPER (2.50 M) (1/07-), Reman for New PN KBV11040

1шт.

2

KBV24080C

CORE-HYD CYLINDER

Return Number

1шт.

3

KBV1358

SELF LUB RING

1шт.

4

KBV1361

SELF LUB RING

1шт.

9

KHJ1348

ADAPTER

Replaces KHJ15840

1шт.

10

KBV19000

HYDRAULIC HOSE

Replaces KRV22580 (1550mm), KBV16250

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

Replaces KHJ1361

2шт.

12

KBV18990Y2

HYD TUBE

Replaces KBV15500, KBV15500Y2

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

14

KBV15450Y2

HYD TUBE

Replaces KBV15450

1шт.

15

KHJ15840

ADAPTER

1шт.

16

KBV16250

HYDRAULIC HOSE,22.20 mm ID x 1200.00 mm

Replaces KRV22580 (1550mm)

1шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

18

KBV15510Y2

HYD TUBE,20.8 mm ID x 27.2 mm OD

Replaces KBV15510

1шт.

19

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

20

KBV15460Y2

HYD TUBE

Replaces KBV15460

1шт.
