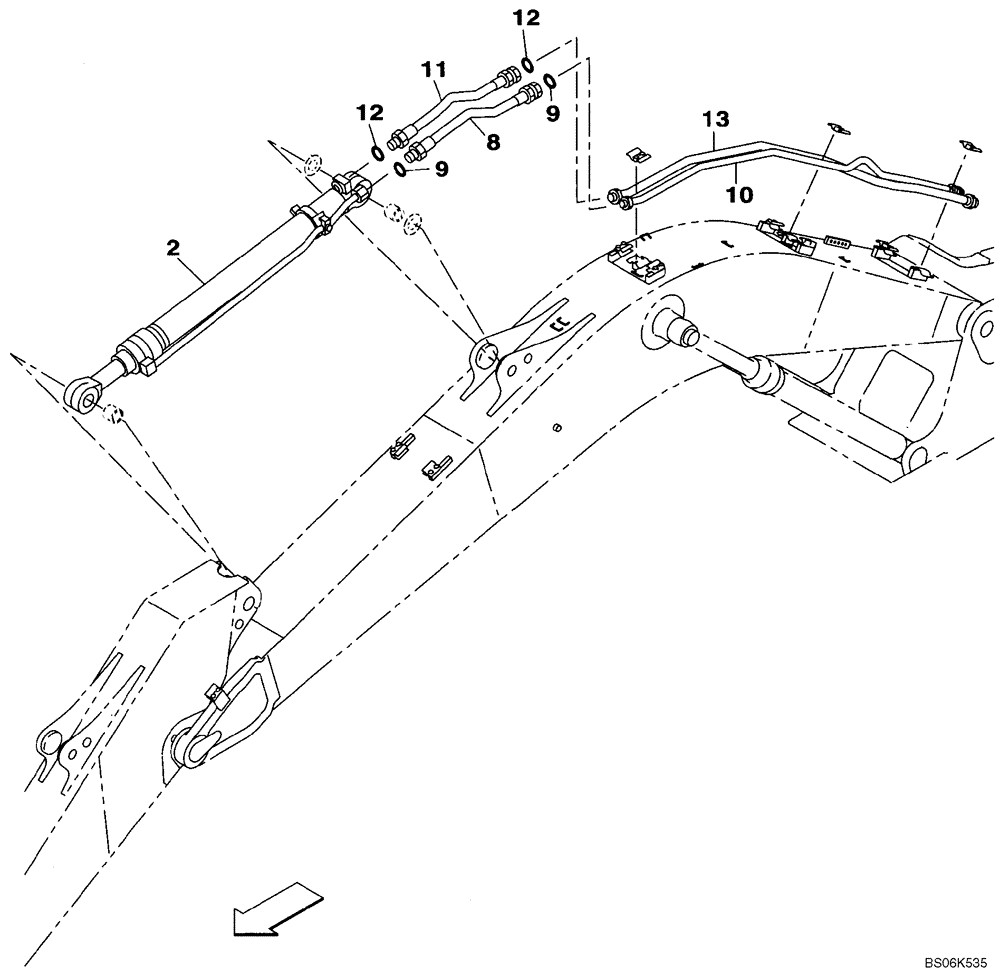

Запчасти Case CX240B (08-012) - HYDRAULICS - ARM CYLINDER LINE (08) - HYDRAULICS

1

KBV11020

HYDRAULIC CYLINDER

Arm; See Figure 08-089

1шт.

1

KBV11020R

REMAN-HYD CYLINDER

CX240B CRAWLER EXCAVATOR TIER 3 (NA), Arm (1/07-)

1шт.

1

KBV11020C

CORE-HYD CYLINDER

Return Number

1шт.

8

KBV17210

HYDRAULIC HOSE,19.00 mm ID x 750.00 mm

Replaces KRV19720

1шт.

9

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

10

KBV15430Y2

HYD TUBE

Replaces KBV15430

1шт.

11

KBV17200

HYDRAULIC HOSE,25.40 mm ID x 750.00 mm

Replaces KBJ3115

1шт.

12

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

13

KBV15440Y2

HYD TUBE

Replaces KBV15440

1шт.
