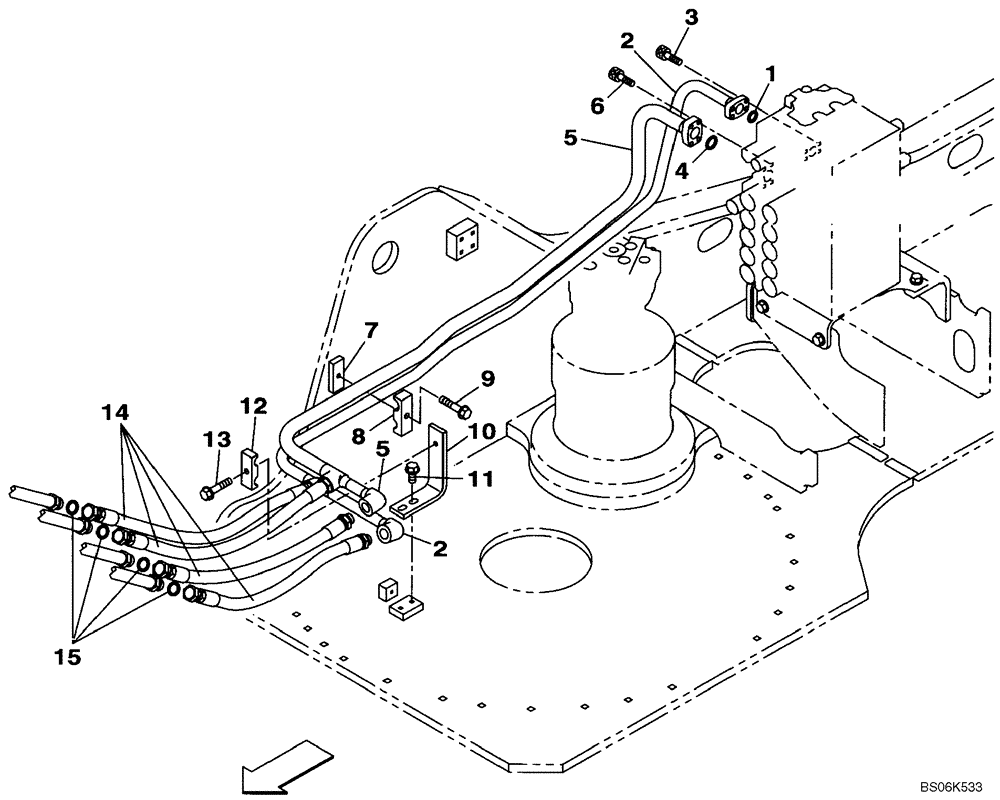

Запчасти Case CX240B (08-010) - HYDRAULICS - BOOM (08) - HYDRAULICS

1

155210A1

O-RING

1шт.

2

KBJ10530

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

3

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

4

155211A1

O-RING

1шт.

5

KBJ10520

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

6

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

7

KRJ10720

PLATE

1шт.

8

153186A1

COLLAR

1шт.

9

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

1шт.

10

KRJ10900

SUPPORT

1шт.

11

166352A1

BOLT

2шт.

12

152085A1

COLLAR

1шт.

13

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

1шт.

14

KRJ11330

HYDRAULIC HOSE,19.00 mm ID x 810.00 mm

4шт.

15

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.
