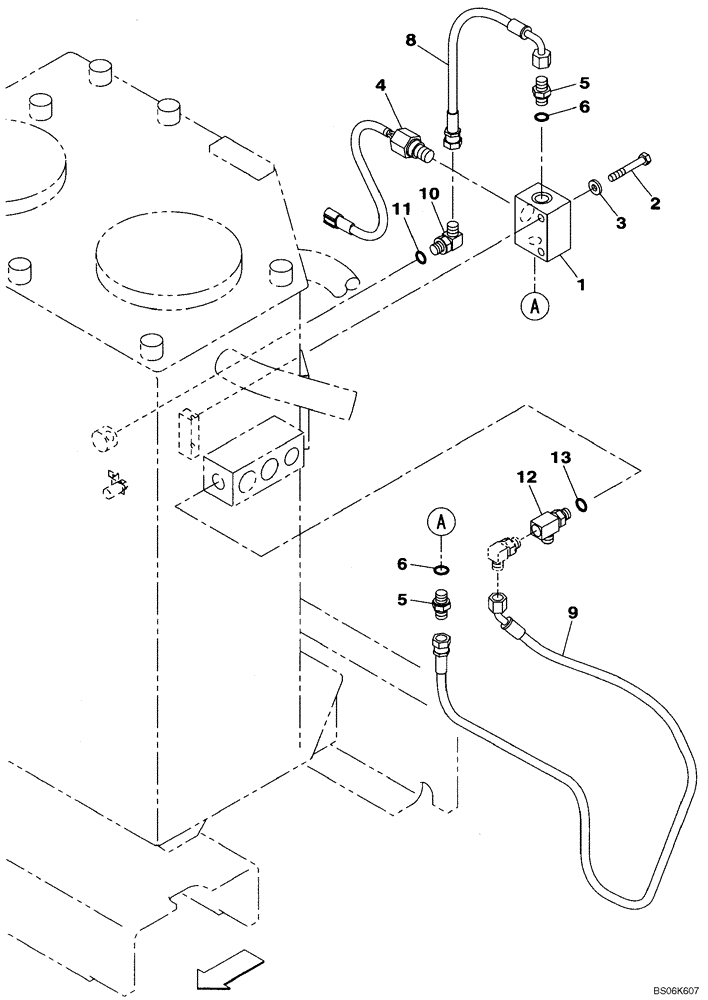

Запчасти Case CX240B (08-002) - HYDRAULIC RESERVOIR - PRESSURE SWITCH (08) - HYDRAULICS

1

KHJ11730

MANIFOLD VALVE

1шт.

2

827-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

3

153081A1

WASHER

2шт.

4

KHR14470

PRESSURE SWITCH

Pressure

1шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 6

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

KHJ2292

HOSE

280 mm (11 in)

1шт.

9

KHJ15120

HYDRAULIC HOSE

1350 mm (53-1/8 in)

1шт.

10

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

12

KHJ2773

TEE

Incl. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
