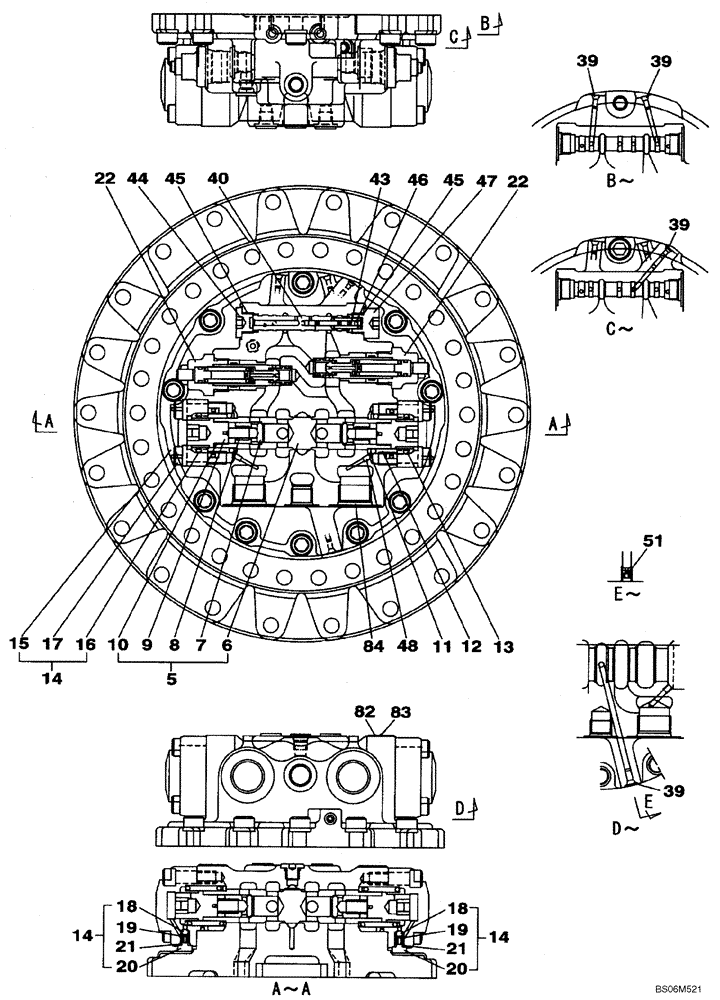

Запчасти Case CX240B (06-04) - MOTOR ASSY - TRAVEL, INLET AND OUTLET (06) - POWER TRAIN

KBA10290

MOTO-REDUCTION GEAR

Includes All Parts On Figures 06-02 - 06-04

1шт.

KBA14420R

REMAN-MOTO REDUCTION

CX240B CRAWLER EXCAVATOR TIER 3 (NA) ASSY, (1/07-), Reman for New PN KBA10290

1шт.

KBA14420C

CORE-MOTO-REDUCTION UNIT

Return Number

1шт.

NSS

NOT SOLD SEPARAT

Motor, Piston; Includes 5 - 86; Also Includes Parts On Figures 06-02, 06-03

1шт.

5

NSS

NOT SOLD SEPARAT

Spool Assy; Incl. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

Spool

1шт.

7

NSS

NOT SOLD SEPARAT

Valve, Check

2шт.

8

NSS

NOT SOLD SEPARAT

Spring

2шт.

9

NSS

NOT SOLD SEPARAT

Plug

2шт.

10

154495A1

O-RING

2шт.

11

156110A1

SPRING SEAT

2шт.

12

LG006200

SPRING

Replaces 160261A1

2шт.

13

LR015850

SPRING SEAT

Replaces 156111A1

2шт.

14

LR015910

BLOCK

Incl. 15 - 21, Replaces TR00587

2шт.

15

NSS

NOT SOLD SEPARAT

Cap

1шт.

16

154589A1

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

Bolt

4шт.

18

NSS

NOT SOLD SEPARAT

Ball

1шт.

19

NSS

NOT SOLD SEPARAT

Spring

1шт.

20

NSS

NOT SOLD SEPARAT

Plug

1шт.

21

154455A1

O-RING

1шт.

22

LJ014590

VALVE PRESSURE RELIE

See Figure 06-03

2шт.

39

NSS

NOT SOLD SEPARAT

Plug

8шт.

40

NSS

NOT SOLD SEPARAT

Spool; See Figure 06-03

1шт.

43

LG00343

COMPRESSION SPRING

1шт.

44

LK00329

PLUG

1шт.

45

154487A1

O-RING

2шт.

46

LS00127

GUIDE

1шт.

47

LK00306

PLUG

1шт.

48

NSS

NOT SOLD SEPARAT

Orifice

2шт.

51

156872A1

ORIFICE

3шт.

51a

164485A1

ORIFICE

1шт.

82

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

83

NSS

NOT SOLD SEPARAT

Screw

2шт.

84

NSS

NOT SOLD SEPARAT

Plug

2шт.

127

LZ007960

SEAL KIT

Incl. 10, 16, 21, 45; Also Includes Parts On Figure 06-03

1шт.

130

LZ006890

REPAIR KIT

Incl. 39, 40, 48, 51; Also Includes Parts On Figure 06-03

1шт.
