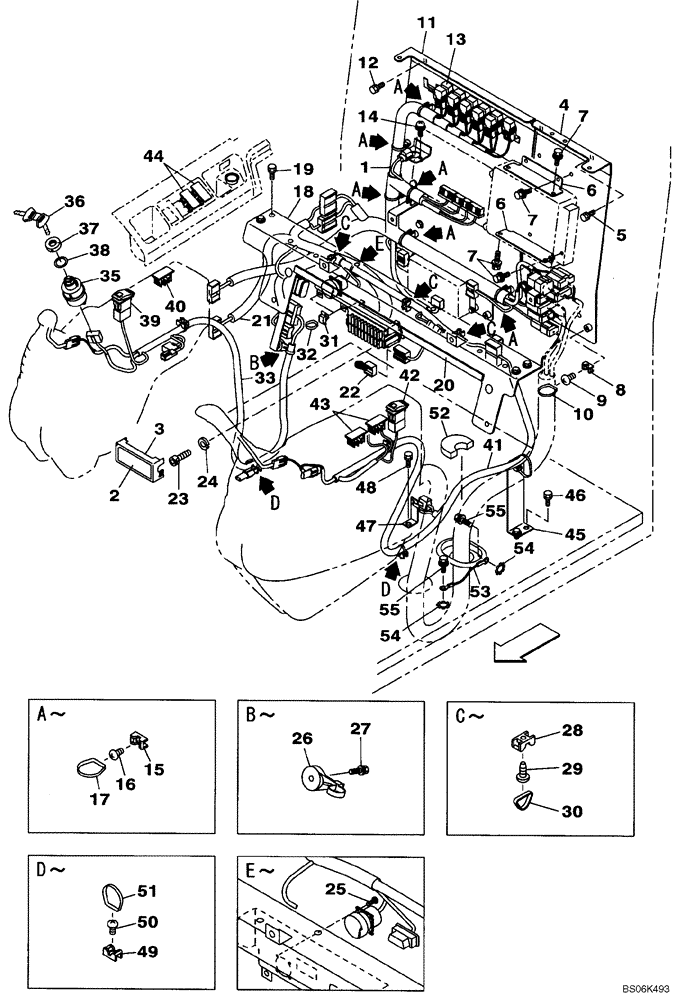

Запчасти Case CX240B (04-07) - ELECTRICAL - CAB (04) - ELECTRICAL SYSTEMS

1

KHR16002

WIRE HARNESS

HARNESS, WIRE, Replaces KHR16001, KHR16000

1шт.

2

KHP12180

DECAL

1шт.

3

KHR15940

COVER

1шт.

4

KHR13450

BRACKET

1шт.

5

166345A1

BOLT

4шт.

6

KHR13480

BRACKET

2шт.

7

159602A1

BOLT,Sems, Hex, M6 x 16mm

8шт.

8

150860A1

COLLAR

1шт.

9

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

10

150496A1

MOUNTING CLIP

1шт.

11

KHR13460

BRACKET

1шт.

12

166345A1

BOLT

4шт.

13

KHR3802

RELAY

11шт.

14

157538A1

SCREW

2шт.

15

150860A1

COLLAR

6шт.

16

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

6шт.

17

150496A1

MOUNTING CLIP

6шт.

18

KHR13471

BRACKET

Replaces KHR13470

1шт.

19

166345A1

BOLT

4шт.

20

KHR14230

SEAL

1шт.

21

KHR15991

WIRE HARNESS

Incl. 22; Replaces KHR15990

1шт.

22

KHR15950

WIRE HARNESS

1шт.

23

108R006Y020R

BOLT

2шт.

24

892-11006

LOCK WASHER,M6

2шт.

25

145N003S008R

SCREW,Pan Hd, M3 x 8mm

4шт.

26

KHR2583

CLAMP

1-2шт.

27

159602A1

BOLT,Sems, Hex, M6 x 16mm

1-2шт.

28

150860A1

COLLAR

3-4шт.

29

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

3-4шт.

30

150496A1

MOUNTING CLIP

3-4шт.

31

KHR10220

MOUNTING CLIP

If Used

2шт.

32

150496A1

MOUNTING CLIP

If Used

2шт.

33

KHR16111

WIRE HARNESS

Replaces KHR16110

1шт.

KHR20050

IGNITION SWITCH

SWITCH, IGNITION, Incl. 35 - 38, Replaces KHR3270

1шт.

35

KHR3078

IGNITION SWITCH

1шт.

36

KHR20070

IGNITION KEY

KEY CASE, Replaces 150979A1

2шт.

37

KHR3080

CAP

1шт.

38

KHR3081

WASHER

1шт.

39

KHR15850

ROCKER SWITCH

Travel Alarm

1шт.

40

KHR10390

CAP

1шт.

41

KHR16121

WIRE HARNESS

Replaces KHR16120

1шт.

42

KHR14050

SWITCH,Emergency stop

1шт.

43

KHR10390

CAP

2шт.

44

KHR10390

CAP

2шт.

45

KHR13490

BRACKET

1шт.

46

166345A1

BOLT

2шт.

47

KHR13500

BRACKET

1шт.

48

166345A1

BOLT

1шт.

49

150860A1

COLLAR

2шт.

50

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

51

150496A1

MOUNTING CLIP

2шт.

52

KHJ14620

SEAL

1шт.

53

KHR11240

GROUND CABLE

1шт.

54

893-11008

LOCK WASHER,Ext Tooth, M8

2шт.

55

167518A1

BOLT

2шт.

56

KHR3748

COLLAR

Not Illustrated

1шт.

57

167518A1

BOLT

Not Illustrated

1шт.
