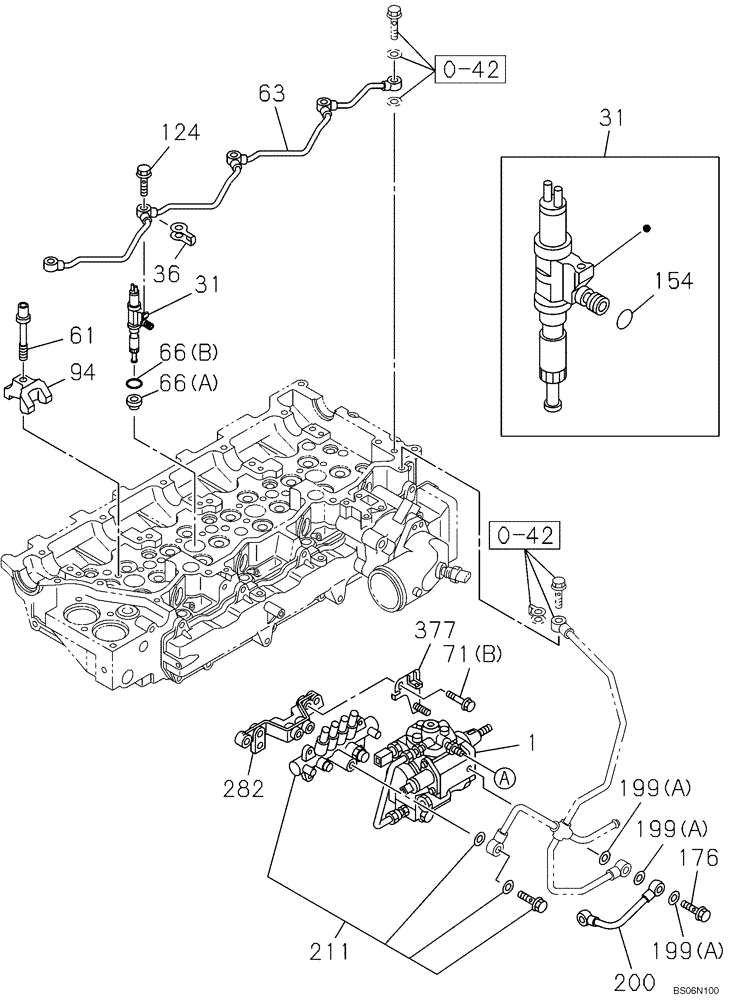

Запчасти Case CX240B (03-04) - OIL CIRCUIT (03) - FUEL SYSTEM

0-42

REF

INSTRUCTION

See Figure 03-08

1шт.

1

87560106

FUEL INJECTION PUMP

1шт.

1

87560106R

REMAN-INJECTION PUMP

CX240B Tier 3 (1/07-)

1шт.

1

87560106C

CORE-INJECTION PUMP

Return Number

1шт.

31

87336445

FUEL SYSTEM INJECTOR

Incl. 154

4шт.

31

84300343R

REMAN-FUEL INJECTOR

CX240B Tier 3, Replaces P/N 87336445

4шт.

31

84300343C

CORE-FUEL INJECTOR

Return Number

4шт.

36

72109655

SEAL

4шт.

61

87378846

BOLT

4шт.

63

87596670

RETURN PIPE

1шт.

66a

438176A1

GASKET

4шт.

66b

72109764

SEAL

4шт.

71b

87596873

BOLT

2шт.

94

87596877

NOZZLE HOLDER

4шт.

124

426418A1

BOLT

4шт.

154

87379795

GASKET

4шт.

176

87379798

BOLT

1шт.

199a

289092A1

GASKET

3шт.

200

87596894

TUBE

1шт.

211

87596902

MANIFOLD

See Figure 03-05

1шт.

282

87596911

BRACKET

1шт.

377

87596935

BRACKET

2шт.
