/ / / / / / / / (02-17) - ENGINE FLYWHEEL HOUSING

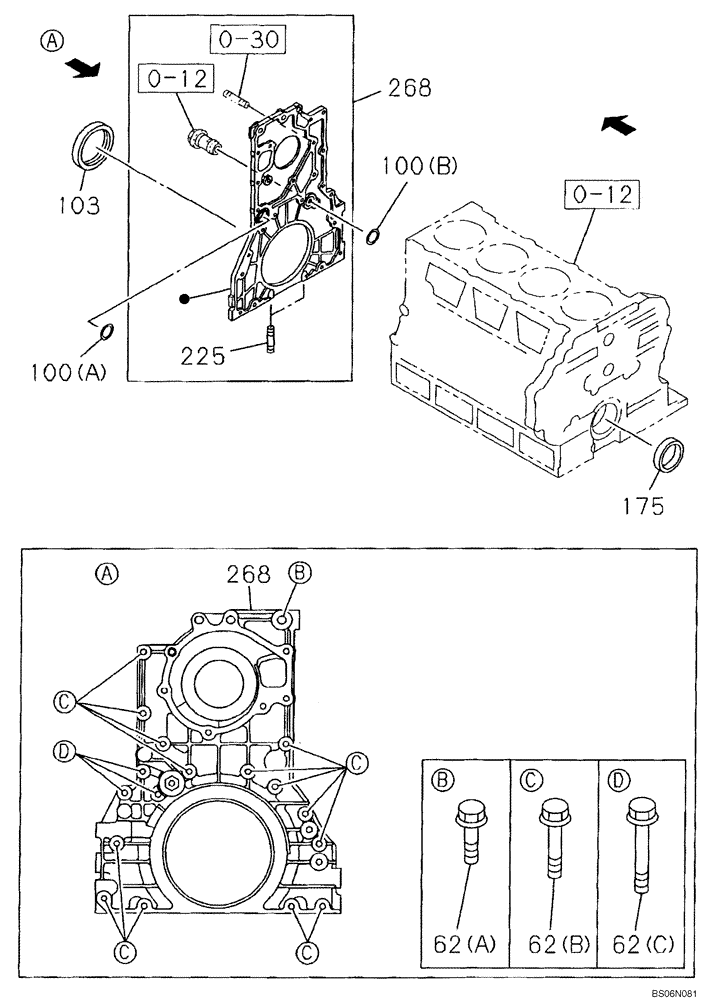

Запчасти Case CX240B (02-17) - ENGINE FLYWHEEL HOUSING (02) - ENGINE
268
62b
0-12
175
62a
225
100a
0-12
103
62c
268
0-30
100b
0-12
REF
INSTRUCTION
See Figure 02-11
1шт.
0-30
REF
INSTRUCTION
See Figure 02-22
1шт.
62a
87596004
BOLT
1шт.
62b
87595258
BOLT
14шт.
62c
87595261
BOLT
3шт.
100a
438160A1
GASKET
1шт.
100b
87596009
GASKET
1шт.
103
87596010
SEAL
1шт.
175
87336448
SEAL
1шт.
225
87596030
STUD
2шт.
268
87596036
COVER
Incl. 225
1шт.
