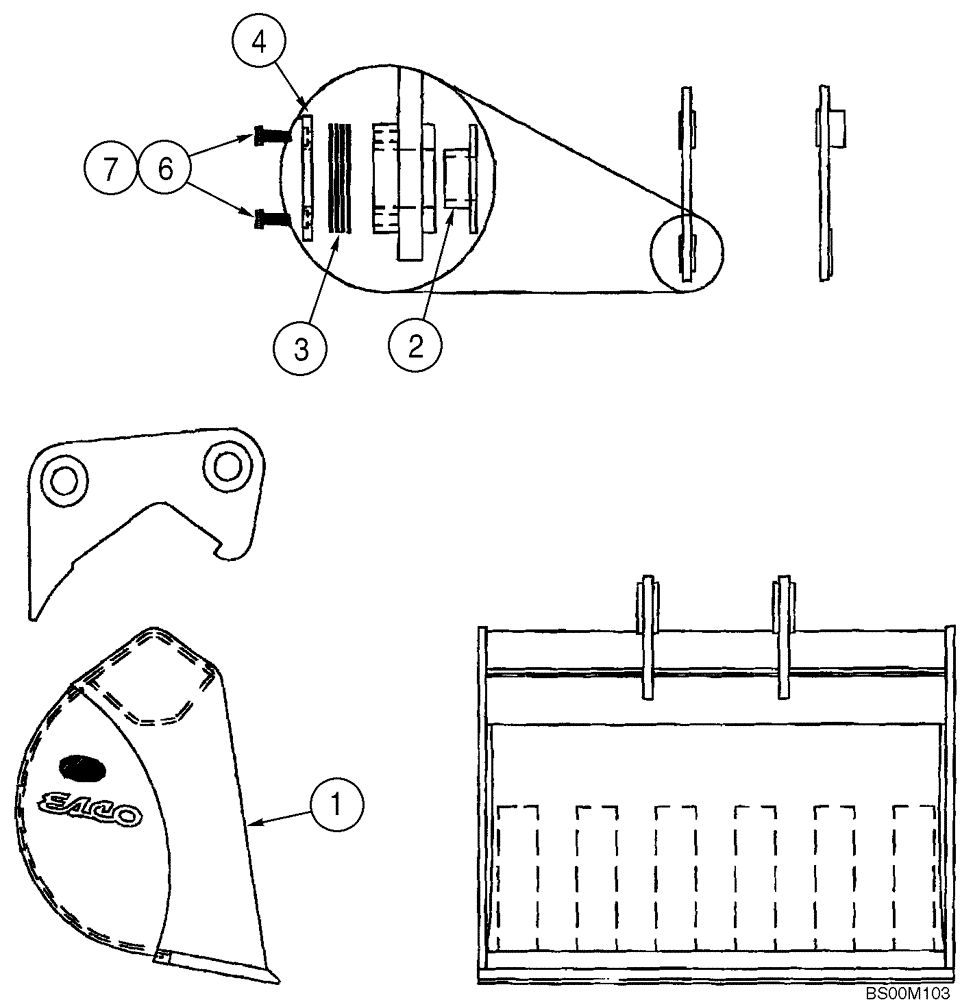

Запчасти Case CX240B (09-44) - BUCKETS, ESCO - DITCH CLEANING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

371578A1

BUCKET

0.99 cu m (1.30 cu yd)

1шт.

1

371579A1

BUCKET

1.110 cu m (1.45 cu yd)

1шт.

2

166000A1

BUSHING

1шт.

3

378633A1

SHIM

6шт.

4

378634A1

PLATE

1шт.

5

378632A1

PIN

Not Illustrated

2шт.

6

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

7

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

378643A1

KIT

Adjustment; Incl. 2 - 7

1шт.
