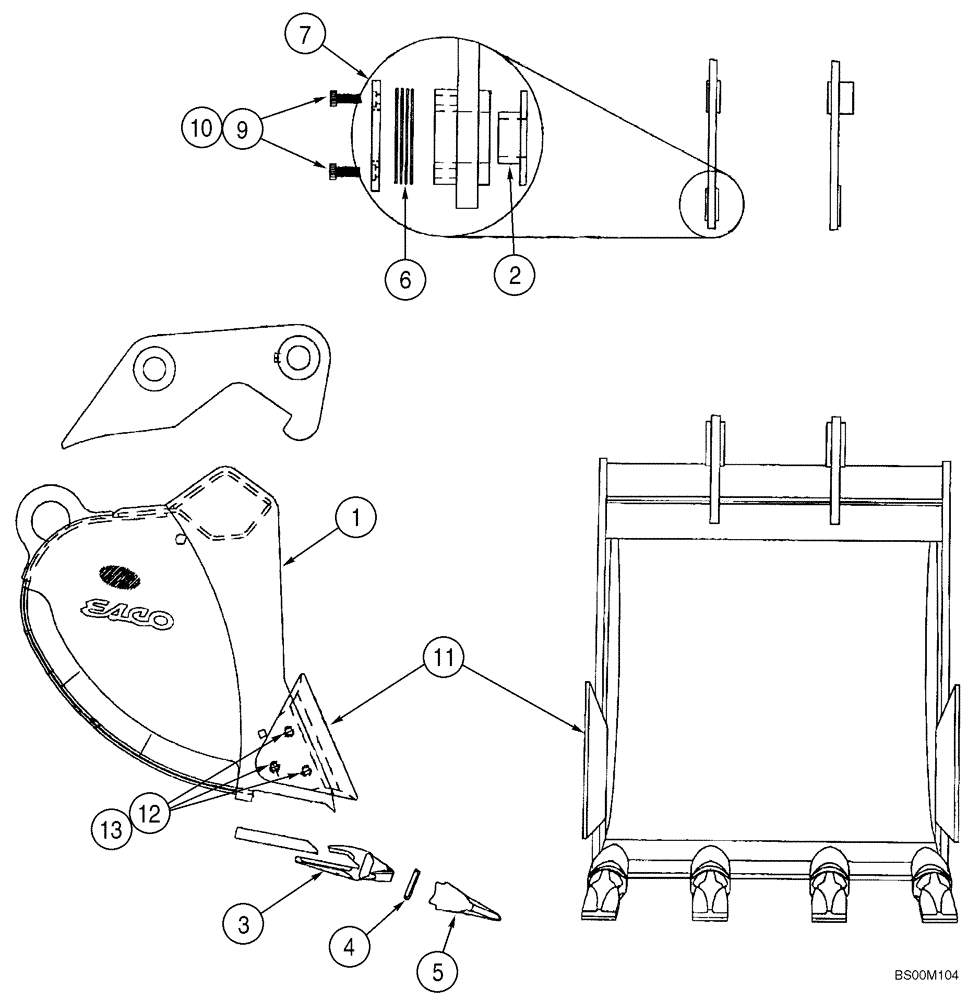

Запчасти Case CX240B (09-42A) - BUCKETS, ESCO - HEAVY DUTY BUCKETS (09) - CHASSIS/ATTACHMENTS

1

371573A1

BUCKET

0.6 cu m (0.79 cu yd); With 3 Teeth

1шт.

1

371574A1

BUCKET

0.8 cu m (1.05 cu yd); With 4 Teeth

1шт.

1

371575A1

BUCKET

1.0 cu m (1.32 cu yd); With 4 Teeth

1шт.

1

371576A1

BUCKET

1.22 cu m (1.59 cu yd); With 5 Teeth

1шт.

1

371577A1

BUCKET

1.43 cu m (1.87 cu yd); With 5 Teeth

1шт.

1

371588A1

BUCKET

1.63 cu m (2.15 cu yd); With 6 Teeth

1шт.

2

166000A1

BUSHING

1шт.

3

254091A1

ADAPTER

Tooth

3-6шт.

4

254098A1

BUCKET TOOTH KEY

3-6шт.

5

254093A1

TOOTH

3-6шт.

6

378633A1

SHIM

6шт.

7

378634A1

PLATE

1шт.

8

378632A1

PIN

Not Illustrated

2шт.

9

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

4шт.

10

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

378662A1

KIT

Shroud; Incl. 11 - 13

1шт.

11

244962A1

BLADE

2шт.

12

232-41314

LOCK NUT,7/8"-9, GC

6шт.

13

320-21444

CARRIAGE BOLT,#3, 7/8" - 9 x 2 3/4", Gr 8

6шт.

378643A1

KIT

Adjustment; Incl. 2, 6 - 10

1шт.
