(09-41) - SEAT AND MOUNTING - AIR SEAT

Запчасти Case CX240B (09-41) - SEAT AND MOUNTING - AIR SEAT (09) - CHASSIS/ATTACHMENTS

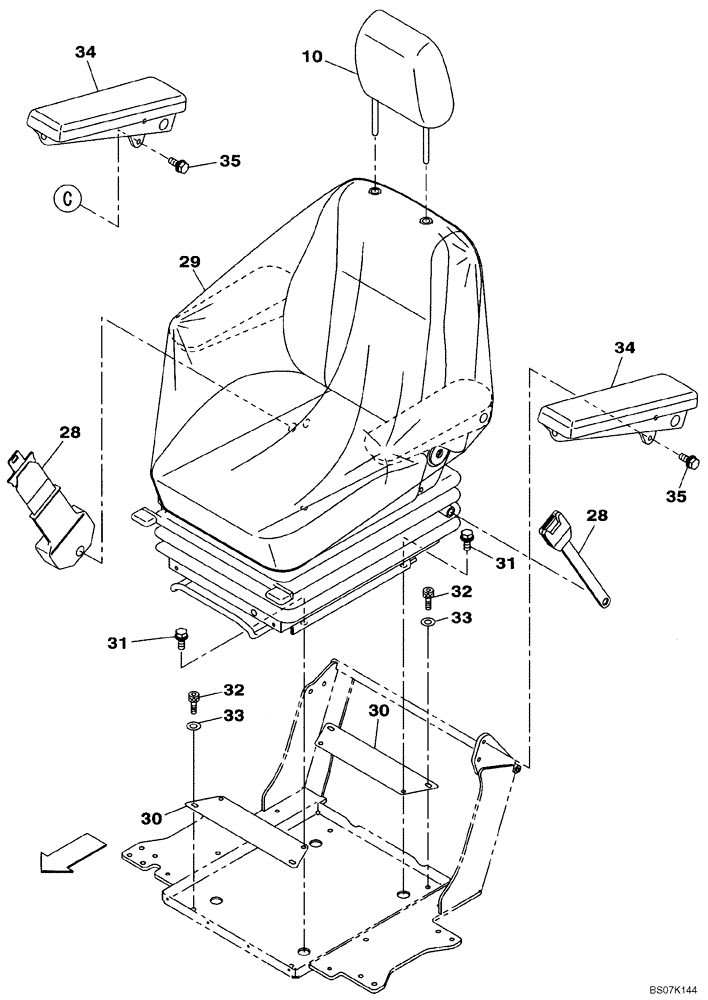

Схема запчастей Case CX240B - (09-41) - SEAT AND MOUNTING - AIR SEAT (09) - CHASSIS/ATTACHMENTS
35
28
34
10
31
30
33
34
32
32
31
35
28
30
33
29
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

10

87350977

SEAT HEADREST

1шт.

28

87706012

SEAT BELT

Seat Belt; Includes Hardware

1шт.

25

166121A1

SEAT COVER

1шт.

30

KHN13530

PLATE

2шт.

31

166350A1

BOLT

8шт.

32

108R008Y020R

HEX SOC SCREW

4шт.

33

892-11008

LOCK WASHER,8mm ID

4шт.

34

KHN11720

ARMREST

2шт.

35

KHN17270

BOLT,Spcl

4шт.
