(09-40) - BUCKET CYLINDER - MOUNTING

Запчасти Case CX240B (09-40) - BUCKET CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

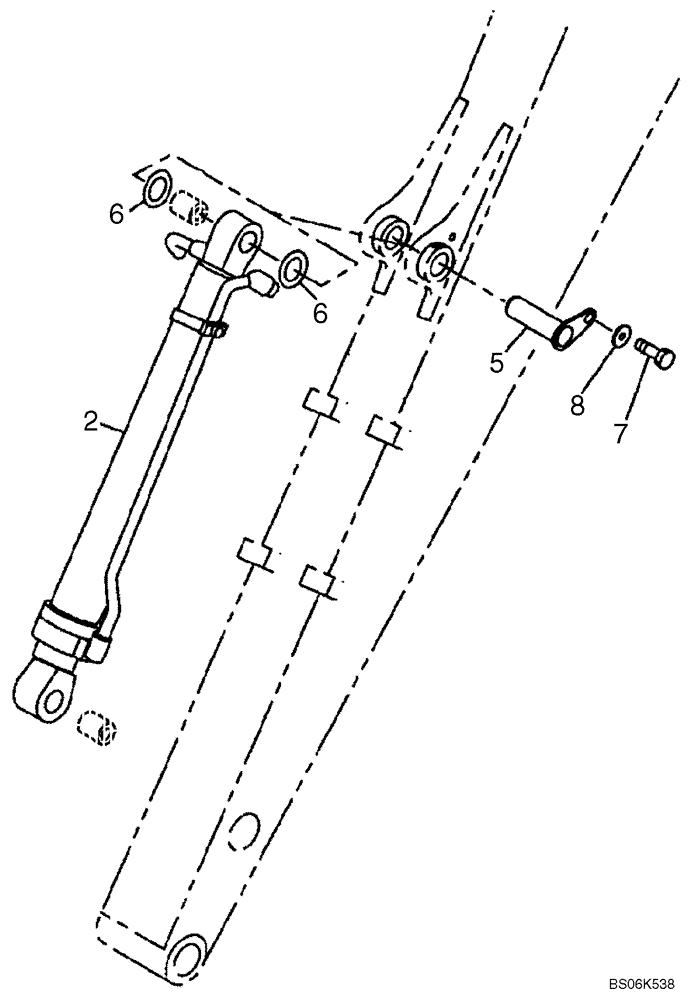

Схема запчастей Case CX240B - (09-40) - BUCKET CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS
6
5
8
2
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

KBV11040

BUCKET CYLINDER

See Figure 08-090

1шт.

2

KBV24080R

REMAN-HYD CYLINDER

CX240B CRAWLER EXCAVATOR TIER 3 (NA), MOUNTING (1/07-), Reman for New PN KBV11040

1шт.

2

KBV24080C

CORE-HYD CYLINDER

Return Number

1шт.

5

KBV11530

PIN

1шт.

6

159741A1

SHIM

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

8

157141A1

WASHER

1шт.

Выбрано товаров: 7
