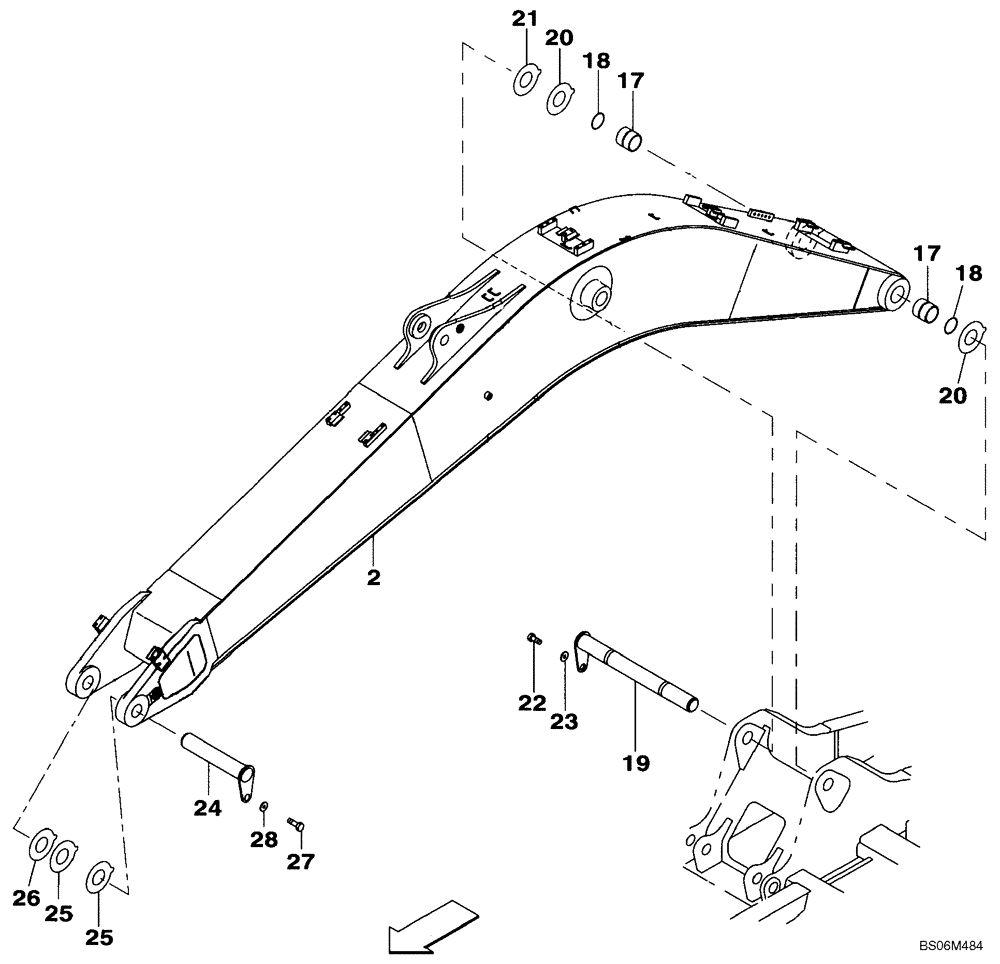

Запчасти Case CX240B (09-35) - BOOM (09) - CHASSIS/ATTACHMENTS

KBV15361

BOOM

Incl. 2, 17, 18, Replaces KBV15360

1шт.

2

NSS

NOT SOLD SEPARAT

Boom

1шт.

17

KBV1360

SELF LUB RING

2шт.

18

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

2шт.

19

KBV11580

PIN

1шт.

20

KBV11190

SHIM,1mm Thk

2шт.

21

KBV11200

SHIM,2mm Thk

1шт.

22

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

23

157141A1

WASHER

1шт.

24

KBV14380

PIN

1шт.

25

KBV11190

SHIM,1mm Thk

2шт.

26

KBV11200

SHIM,2mm Thk

1шт.

27

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

28

157141A1

WASHER

1шт.
