(09-23) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER

Запчасти Case CX240B (09-23) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER (09) - CHASSIS/ATTACHMENTS

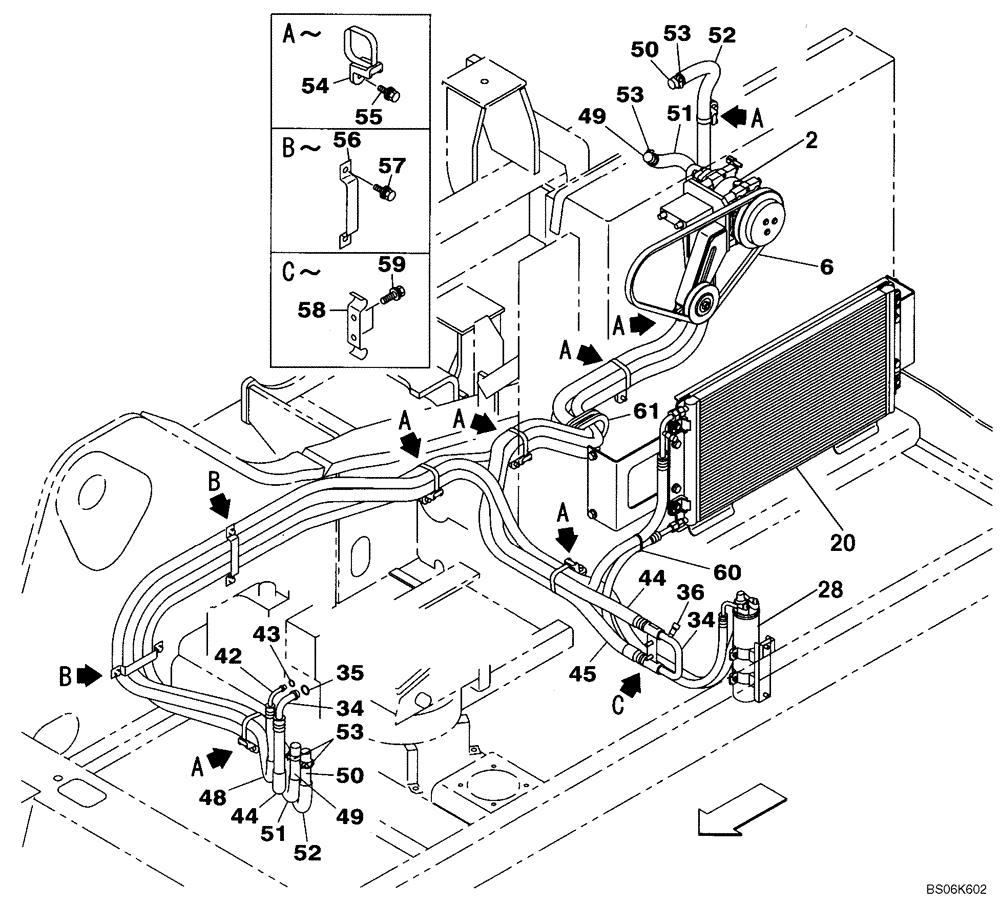

Схема запчастей Case CX240B - (09-23) - AIR CONDITIONING - CONDENSER AND RECEIVER-DRIER (09) - CHASSIS/ATTACHMENTS
54
44
60
6
28
53
50
42
45
34
58
43
49
20
36
48
53
55
52
61
57
50
49
59
53
51
2
44
56
34
51
35
52
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

KHR3197

COMPRESSOR

See Figure 09-24

1шт.

KHR3197R

REMAN-COMPRESSOR

CX240B Tier 3 (1/07-)

1шт.

KHR3197C

CORE-COMPRESSOR

Return Number

1шт.

6

KHR10550

BELT

1шт.

20

KHR13070

CONDENSER

See Figure 09-25

1шт.

28

KHR13590

RECEIVER-DRYER

See Figure 09-25

1шт.

34

KHR14940

HOSE

Incl. 35, 36

1шт.

35

169052A1

O-RING

2шт.

36

KHR3054

CAP

1шт.

42

KHR14970

HOSE

Incl. 43

1шт.

43

169054A1

O-RING

2шт.

44

166125A1

PLASTIC-RUBBER TUBE

1шт.

45

166129A1

PLASTIC-RUBBER TUBE

1шт.

48

151175A1

PLASTIC-RUBBER TUBE

1шт.

49

KHR15000

INTAKE AIR HOSE,16.00 mm ID x 3800.00 mm

1шт.

50

KHR15010

INTAKE AIR HOSE,16.00 mm ID x 4100.00 mm

1шт.

51

KBR0722

PLASTIC-RUBBER TUBE

1шт.

52

KBR0697

PLASTIC-RUBBER TUBE

1шт.

53

KRJ1062

COLLAR

4шт.

54

KHR2581

CLAMP

7шт.

55

KHJ1215

BOLT,Spcl

7шт.

56

KHJ11090

COLLAR

2шт.

57

KHJ1215

BOLT,Spcl

4шт.

58

KHR10730

COLLAR CLAMP

1шт.

59

KHJ1215

BOLT,Spcl

2шт.

60

150496A1

MOUNTING CLIP

2шт.

61

KRH10610

SEAL PROTECTION

1шт.
