Запчасти Case CX240B (09-15) - SEAT MECHANICAL (09) - CHASSIS/ATTACHMENTS

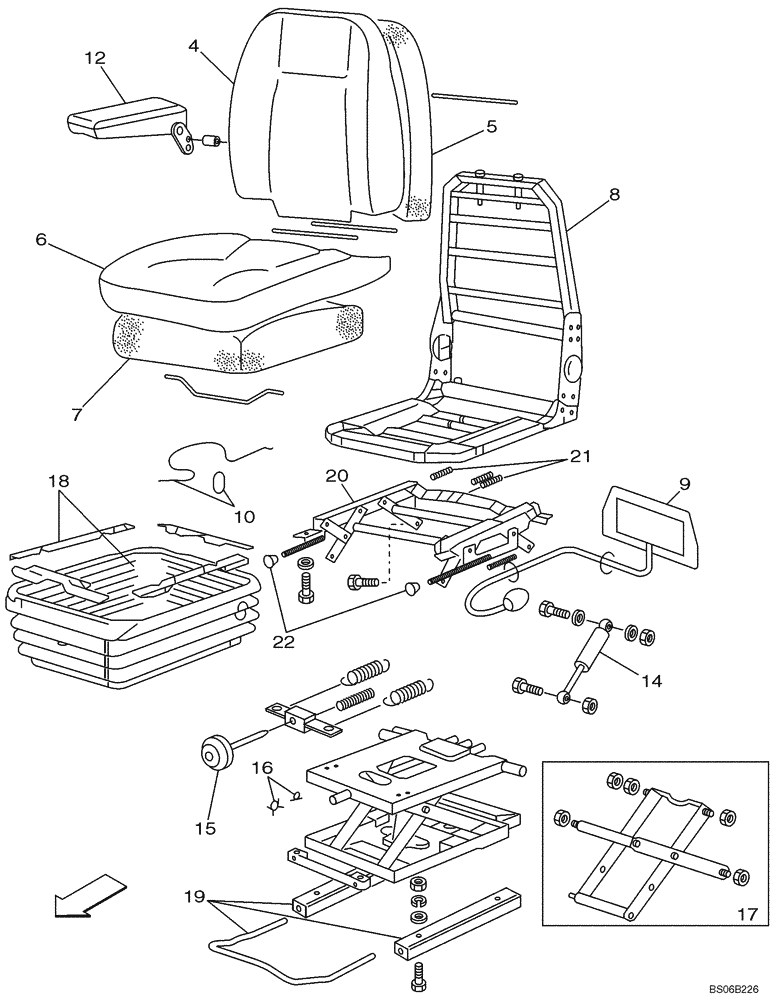

Схема запчастей Case CX240B - (09-15) - SEAT MECHANICAL (09) - CHASSIS/ATTACHMENTS
14
5
20
16
9
15
8
4
12
19
18
22
21
6
10
7
17

Артикул

Название

Примечание

Количество

87344650

DRIVER SEAT

Incl. 4 - 22; Also Includes Ref 2, Figure 09-15A

1шт.

4

87350972

SEAT COVER

1шт.

5

9969293

SEAT CUSHION

1шт.

6

87350973

SEAT COVER

1шт.

7

9969295

SEAT CUSHION

1шт.

8

307043A1

FRAMEWORK

1шт.

9

307044A1

KIT

Pneumatic Lumbar

1шт.

10

71456224

CABLE

Recliner Cable

1шт.

12

307048A1

ARMREST ASSY.

Right Hand and Left Hand

1шт.

307049A1

SUSPENSION

Suspension; Incl. 14 - 17

1шт.

14

L4143253

SET OF PARTS

Suspension Damper

1шт.

15

B2447086

SET OF PARTS

Weight Adjuster

1шт.

16

307050A1

KIT

Suspension Bump Stop

1шт.

17

307051A1

BEARING ASSY

Bearing

1шт.

18

307052A1

KIT

Suspension Cover

1шт.

19

307053A1

KIT

Slide Rail

1шт.

307045A1

KIT

Height Riser; Inc. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

Support

1шт.

21

307046A1

KIT

Height Riser Springs

1шт.

22

307047A1

SET OF PARTS

Knobs

1шт.

Выбрано товаров: 20
