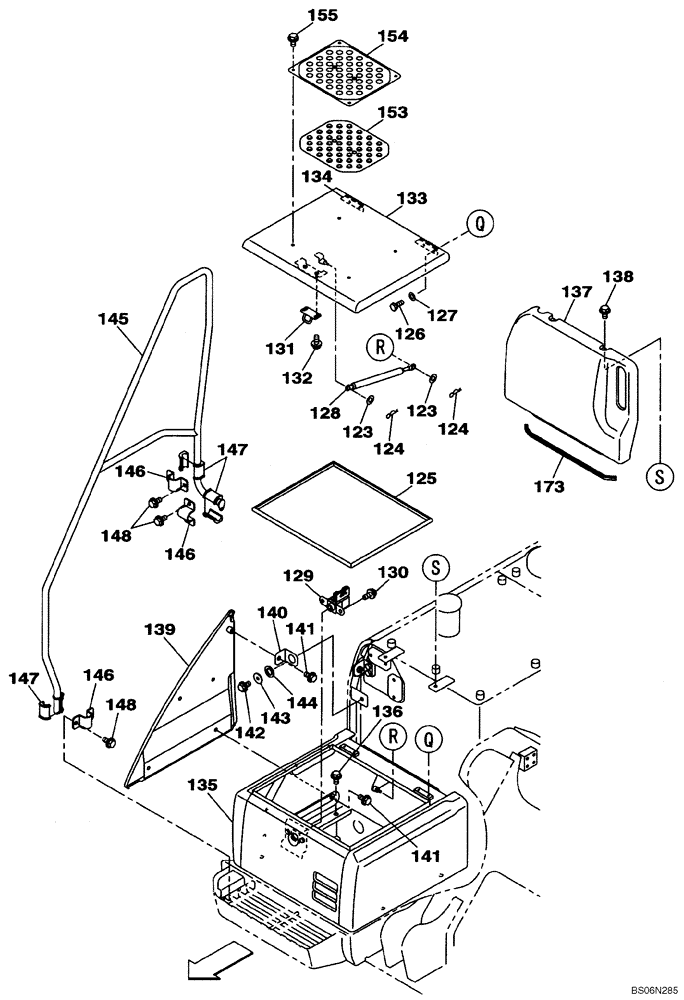

Запчасти Case CX240B (09-08) - STORAGE BOX - INSULATION (09) - CHASSIS/ATTACHMENTS

123

182-008SR

WASHER

2шт.

124

153077A1

COTTER PIN

2шт.

125

KRN16030

SEALING STRIP

Replaces KTN1391

1шт.

126

KAN2771

BOLT,Spcl

4шт.

127

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

If Used

4шт.

128

KHN12750

GAS STRUT

1шт.

129

KHN12730

LOCK

1шт.

130

166351A1

BOLT,Sems, M10 x 20mm

M10 x 20

2шт.

131

KHN12740

SUPPORT

1шт.

132

166350A1

BOLT

M8 x 20

2шт.

133

KRN12360G1

COVER

Incl. 133

1шт.

134

KHN3390

HINGE

2шт.

135

KRN12350G1

COVER

1шт.

136

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

137

KRN12370G1

COVER

1шт.

138

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

139

KHN12710Y2

COVER

1шт.

140

KHN12720

SUPPORT

1шт.

141

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

142

166352A1

BOLT

M12 x 30

1шт.

143

162409A1

WASHER

1шт.

144

KHN2061

WASHER

1шт.

145

KHN12681B1

STAY

Replaces KHN12680B1

1шт.

146

KHN12690

COLLAR

3шт.

147

KHN12700

COLLAR

6шт.

148

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

153

KHN10940

RUBBER PAD

1шт.

154

KHN13510B1

COVER

1шт.

155

KHN13540

BOLT,Spcl

4шт.

173

KRN12790

SEAL PROTECTION

560 mm

1шт.
