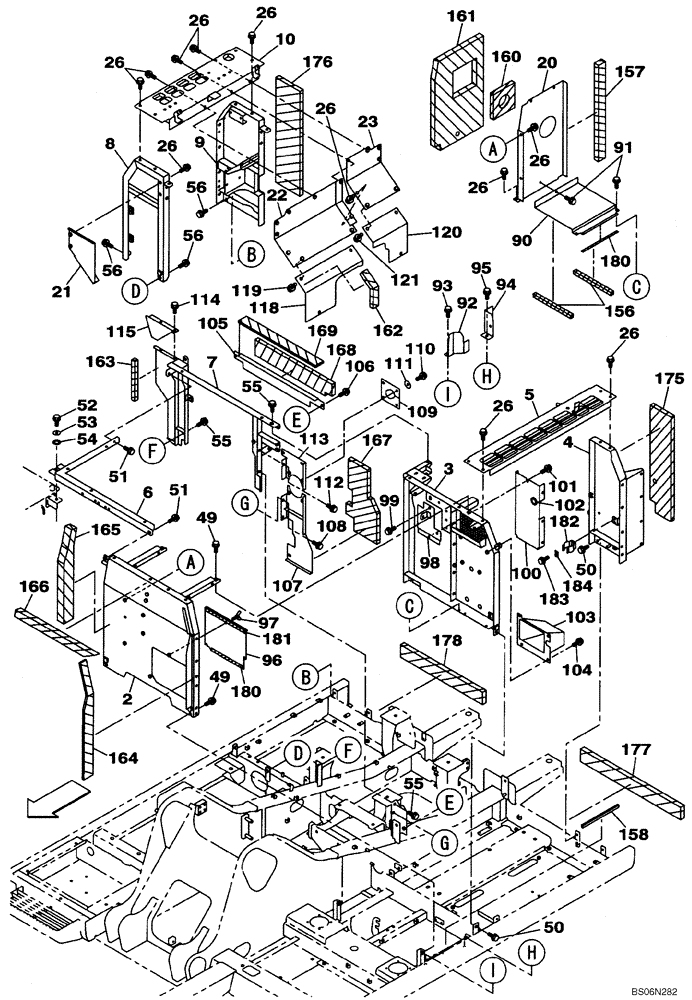

Запчасти Case CX240B (09-05) - FRAMES, COVERS - INSULATION (09) - CHASSIS/ATTACHMENTS

2

KRN14700

SUPPORT ASSY.

1шт.

3

KRN14780

SUPPORT ASSY.

1шт.

4

KRN13080

SUPPORT ASSY.

1шт.

5

KRN14790G1

SIEVE

1шт.

6

KRN12460

SUPPORT ASSY.

1шт.

7

KRN14590

SUPPORT ASSY.

1шт.

8

KRN12480

FRAME

1шт.

9

KBN11450

SUPPORT ASSY.

1шт.

10

KRN12500G1

SUPPORT ASSY.

1шт.

20

KRN14760

COVER

1шт.

21

KRN12610

COVER

1шт.

22

KBN11830

COVER

1шт.

23

KBN11840

COVER

1шт.

26

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

25шт.

49

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

50

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

51

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

52

166352A1

BOLT

1шт.

53

162409A1

WASHER

1шт.

54

KHN2061

WASHER

1шт.

55

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

56

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

90

KRN12600

COVER

1шт.

91

166350A1

BOLT

3шт.

92

KRN11090

COVER

1шт.

93

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

94

KRN11100

COVER

1шт.

95

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

96

KHN12760

COVER

1шт.

97

KHN17030

SPECIAL BOLT

M8 x 12

3шт.

98

KRN14620

COVER

1шт.

99

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

100

KRN14750

COVER

1шт.

101

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

102

159656A1

GROMMET

1шт.

103

KRN14741

COVER

Replaces KRN14740

1шт.

104

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

4шт.

105

KRN10530

COVER

1шт.

106

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

107

KRN14660

COVER

1шт.

108

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

109

KRN14670

RUBBER PAD

1шт.

110

166350A1

BOLT

Replaces 167182A1

4шт.

111

163356A1

WASHER

4шт.

112

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

113

KRN14650

COVER

1шт.

114

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

115

KRN14580

COVER

1шт.

118

KBN11850

COVER

1шт.

119

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

120

KRN12650

COVER

1шт.

121

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.

156

KRN10700

SEAL

2шт.

157

KRN10710

SEAL

1шт.

158

KRN11110

SEAL

1шт.

160

KRN12750

SEAL

1шт.

161

KRN14770

NOISE PROTECTION

1шт.

162

KRN12760

SEAL

1шт.

163

KRN14680

SEAL

1шт.

164

KRN14690

SEAL

1шт.

165

KRN14200

SEAL

1шт.

166

KRN14210

SEAL

1шт.

167

KRN10770

SEAL

1шт.

168

KRN10780

SEAL

1шт.

169

KRN10790

NOISE PROTECTION

1шт.

175

KRN13360

SEAL

1шт.

176

KBN11490

SEAL

1шт.

177

KRN14150

SEAL

1шт.

178

KRN14160

NOISE PROTECTION

1шт.

180

KRN14530

SEAL

2шт.

181

KRN14540

SEAL

1шт.

182

152772A1

HOLDER

1шт.

183

166350A1

BOLT

M8 x 20

2шт.

184

KHN3548

PLATE

1шт.
