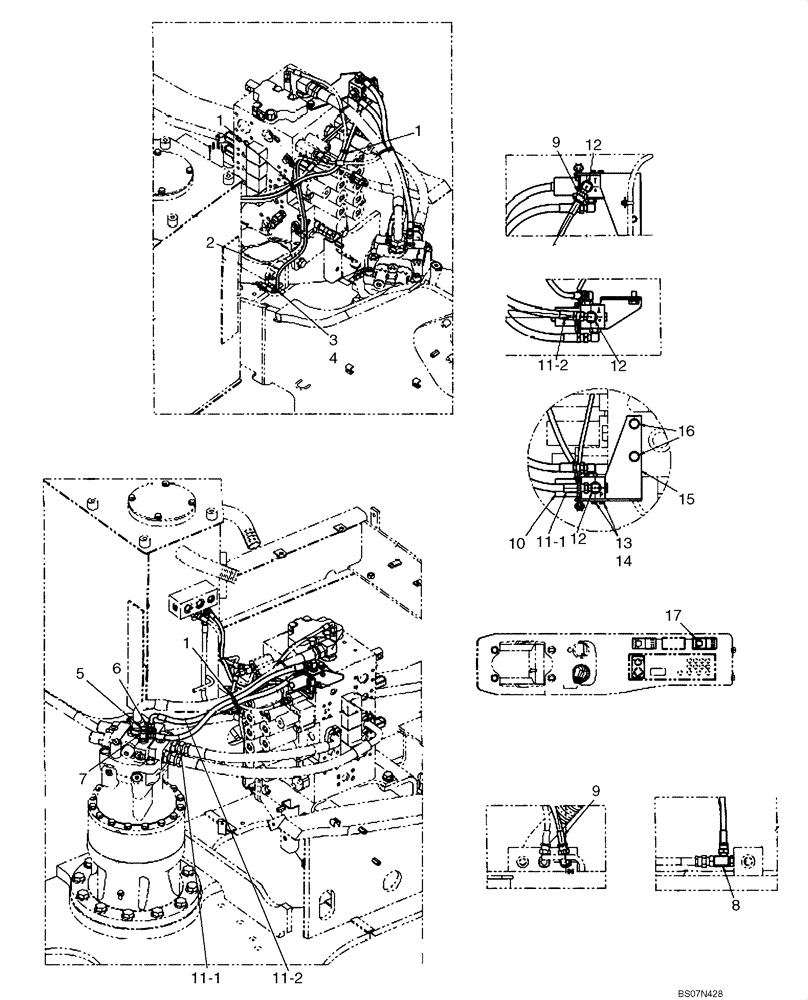

Запчасти Case CX240B (08-102) - KITS, FREE SWING (08) - HYDRAULICS

1

150496A1

MOUNTING CLIP

3шт.

2

KRR10370

HARNESS

1шт.

3

158962A1

CLIP

1шт.

4

167518A1

BOLT

1шт.

5

159002A1

PLUG

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

7

KHJ11640

ORIFICE

1шт.

8

KHJ2773

TEE

1шт.

9

KHJ2048

HOSE,6.3mm ID x 750mm L

1шт.

10

159205A1

VALVE

1шт.

KRH11870

HOSE ASSY. Incl. 11-1, 11-2

1шт.

11-1

KRJ11860

HOSE ASSY.

1шт.

11-2

KRJ6453

HYDRAULIC HOSE,6.30 mm ID x 520.00 mm

1шт.

12

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

3шт.

13

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

14

183-106VR

SPRING WASHER

2шт.

15

KBJ12000

BRACKET

1шт.

16

166351A1

BOLT,Sems, M10 x 20mm

M10X20

2шт.

17

KHR16140

TOGGLE SWITCH

Free Swing

1шт.
