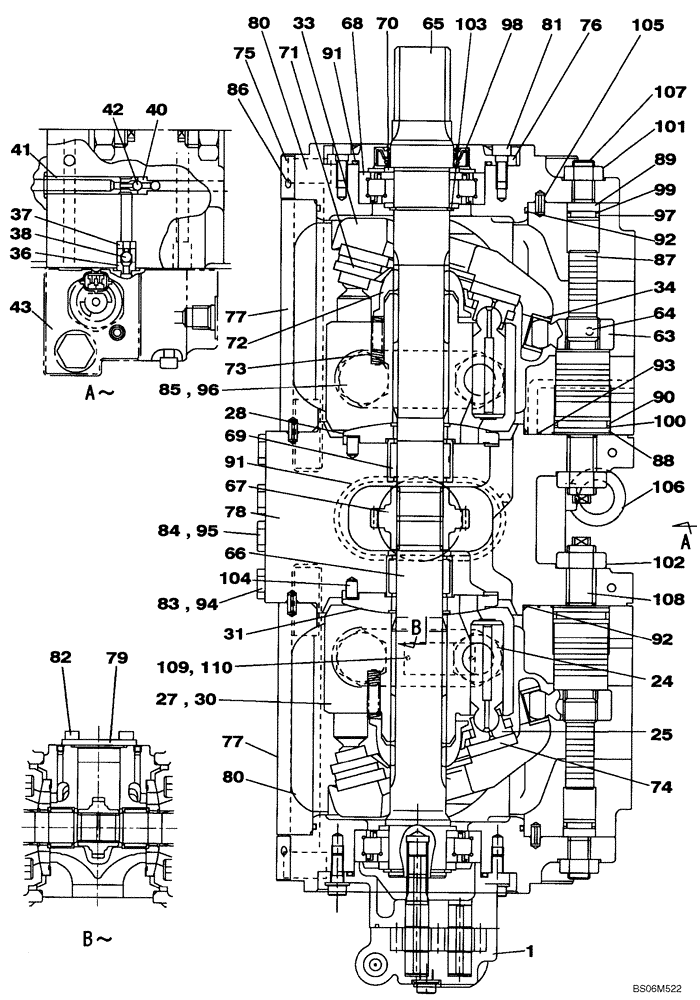

Запчасти Case CX240B (08-091) - KBJ10510 PUMP ASSY, HYDRAULIC - PISTON (08) - HYDRAULICS

KBJ10510

HYDRAULIC PUMP

Includes All Parts On Figures 08-091 - 08-095

1шт.

KBJ10510R

REMAN-HYD PUMP

CX240B CRAWLER EXCAVATOR TIER 3 (NA), PISTON (1/07-)

1шт.

KBJ10510C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

LJ014510

HYDRAULIC PUMP

See Figure 08-092

1шт.

1

LJ014510R

REMAN-HYD PUMP

CX240B CRAWLER EXCAVATOR TIER 3 (NA), PISTON (1/07-)

1шт.

1

LJ014510C

CORE-HYDRAULIC PUMP

Return Number

1шт.

TJ00765

PISTON

Incl. 24, 25

2шт.

24

NSS

NOT SOLD SEPARAT

Piston

9шт.

25

NSS

NOT SOLD SEPARAT

Shoe

9шт.

LJ014500

BARREL

Incl. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

28

NSS

NOT SOLD SEPARAT

Plate

1шт.

LJ014490

BARREL

Incl. 30, 31

1шт.

30

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

31

NSS

NOT SOLD SEPARAT

Plate

1шт.

LR00552

PLATE

Incl. 33, 34

2шт.

33

NSS

NOT SOLD SEPARAT

Plate

1шт.

34

NSS

NOT SOLD SEPARAT

Bushing

1шт.

TNP0022

VALVE

Check; Incl. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

Seat

1шт.

37

NSS

NOT SOLD SEPARAT

Stopper

1шт.

38

NSS

NOT SOLD SEPARAT

Ball

1шт.

TNP0023

VALVE

Check; Incl. 40 - 42

2шт.

40

NSS

NOT SOLD SEPARAT

Seat

1шт.

41

NSS

NOT SOLD SEPARAT

Stopper

1шт.

42

NSS

NOT SOLD SEPARAT

Ball

1шт.

43

LJ014460

VALVE SECTION

See Figure 08-093

1шт.

160161A1

LEVER ASSY.

Incl. 63, 64

2шт.

63

NSS

NOT SOLD SEPARAT

Pin

1шт.

64

NSS

NOT SOLD SEPARAT

Pin

1шт.

65

160033A1

DRIVE SHAFT

1шт.

66

160034A1

DRIVE SHAFT

1шт.

67

LB00535

COUPLING

1шт.

68

TB00026

BEARING, ROLLER, CYL,40mm ID x 90mm OD x 23mm W

2шт.

69

TB00082

NEEDLE BEARING,35 mm ID x 47 mm OD x 30 mm

2шт.

70

156963A1

SPACER

4шт.

71

TR00047

PLATE

2шт.

72

169288A1

BUSHING

2шт.

73

156960A1

SPRING

18шт.

74

160113A1

PLATE

Shoe

2шт.

75

TPP0080

SUPPORT

2шт.

76

160334A1

COVER

1шт.

77

LJ014520

HYDRAULIC PUMP

2шт.

78

TJ00067

VALVE BLOCK

1шт.

79

NSS

NOT SOLD SEPARAT

Cover

1шт.

80

167078A1

BOLT,M8 x 40mm, Cl 12.9

M8 x 40; 12,9

8шт.

81

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

82

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

4шт.

83

155496A1

PLUG

2шт.

84

TLM0023

PLUG

2шт.

85

155471A1

PLUG

4шт.

86

LK00003

PLUG

27шт.

87

TJ00066

PISTON

2шт.

88

TG00286

STOP LOCK

2шт.

89

160116A1

STOP

2шт.

90

LE01176

O-RING

2шт.

91

LE013510

O-RING

(used under cover on top of pump or under aux gear pump)

2шт.

92

LE013500

O-RING

4шт.

93

LE013470

O-RING

16шт.

94

LE013410

O-RING

6шт.

95

LE013490

O-RING

2шт.

96

LE013440

O-RING

4шт.

97

LE01177

O-RING

2шт.

98

LE01178

OIL SEAL

1шт.

99

153970A1

BACK-UP RING

2шт.

100

154017A1

BACK-UP RING

2шт.

101

164R016VR

NUT

2шт.

102

829-1420

NUT,M20, Cl 10

2шт.

103

800-1140

SNAP RING,M40, Ext

2шт.

104

156954A1

DOWEL

2шт.

105

338W060Z014B

LINCH PIN

4шт.

106

126R010SR

EYEBOLT

BOLT, EYE

2шт.

107

LA00036

SET SCREW,Hex

2шт.

108

160296A1

SET SCREW

2шт.

109

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

110

LA00027

RIVET

2шт.
