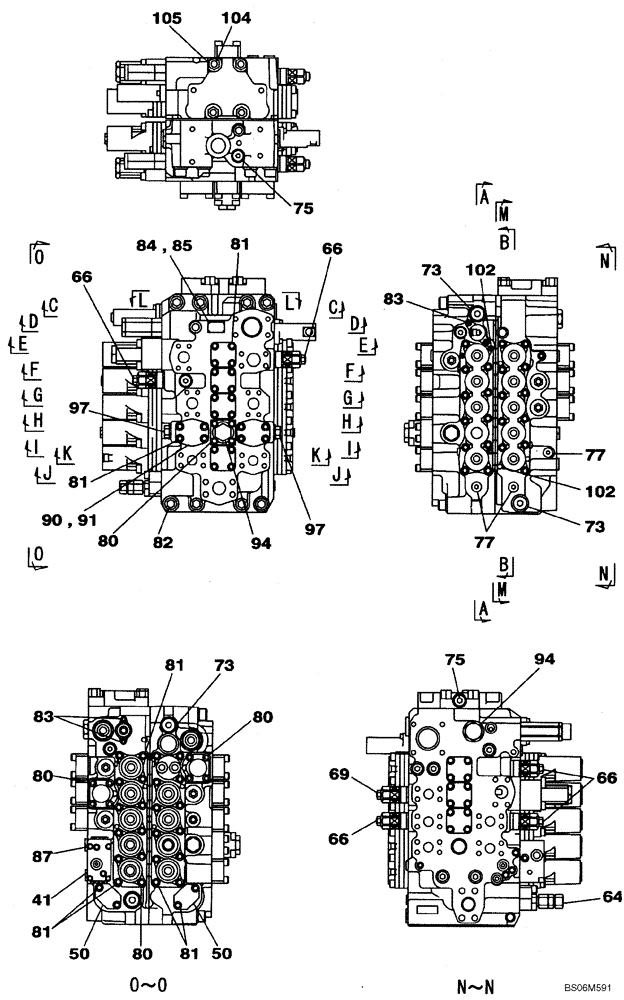

Запчасти Case CX240B (08-062) - KBJ10391 VALVE ASSY - CONTROL (08) - HYDRAULICS

KBJ10391

CONTROL VALVE

Includes All Parts On Figures 08-062 - 08-067

1шт.

41

LR015280

BODY

1шт.

50

LH00250

CAP

2шт.

64

LJ015010

VALVE PRESSURE RELIE

See Figure 08-067

1шт.

66

LJ014730

VALVE PRESSURE RELIE

See Figure 08-067

5шт.

69

LJ015020

VALVE PRESSURE RELIE

See Figure 08-067

1шт.

73

163370A1

PLUG

3шт.

75

163369A1

PLUG

10шт.

77

163972A1

PLUG

3шт.

80

108R010Z055B

BOLT

32шт.

81

108R010Z040B

BOLT

M10 x 40

66шт.

82

108R016Z130B

BOLT

M16 x 130

8шт.

83

LUC0118

BOLT,Hex Skt Hd

4шт.

84

NSS

NOT SOLD SEPARAT

Name Plate

1шт.

85

NSS

NOT SOLD SEPARAT

Rivet

4шт.

87

LA011120

BOLT,Hex Skt Hd

4шт.

90

LR00579

PLUG

2шт.

91

168198A1

O-RING

2шт.

94

LK00302

PLUG

2шт.

97

165839A1

PLUG

2шт.

102

LA011130

BOLT,Hex Skt Hd

2шт.

104

LB011890

TIE-ROD

4шт.

105

LUC0094

SPECIAL NUT

4шт.
