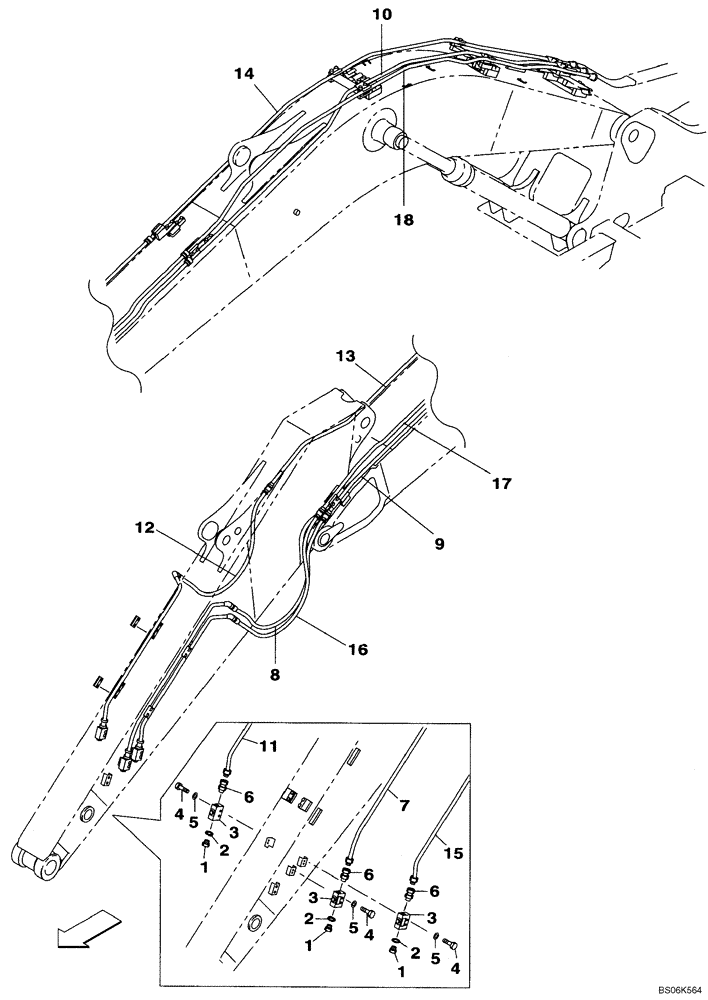

Запчасти Case CX240B (08-042) - SECOND OPTION LINE, LONG ARM (L=3.52 M) (08) - HYDRAULICS

1

159085A1

PLUG

Incl. 2

3шт.

2

154487A1

O-RING

1шт.

3

KHV10440

VALVE

3шт.

4

827-12055

BOLT,Hex, M12 x 1.75 x 55mm, Cl 10.9

6шт.

5

150811A1

WASHER

6шт.

6

KHJ1939

FITTING

3шт.

7

KBV16710

HYD TUBE,26 mm ID x 34 mm OD

1шт.

8

KBV16760

HYDRAULIC HOSE,12.70 mm ID x 2200.00 mm

1шт.

9

KBV15670Y2

HYD TUBE

Replaces KBV15670

1шт.

10

KBV15640Y2

HYD TUBE

Replaces KBV15640, BEFORE 240R5N8EAM1246 240R5N8EAM1247 REPLACE BY KBV21200Y2 AND KBV21210Y2

1шт.

10.5

KBV21210Y2

HYD TUBE

1шт.

11

KBV16720

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

12

KBV16760

HYDRAULIC HOSE,12.70 mm ID x 2200.00 mm

1шт.

13

KBV15680Y2

HYD TUBE

Replaces KBV15680

1шт.

14

KBV15650Y2

HYD TUBE

Replaces KBV15650

1шт.

15

KBV16730

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

16

KBV16770

HYDRAULIC HOSE,12.70 mm ID x 2200.00 mm

1шт.

17

KBV15670Y2

HYD TUBE

Replaces KBV15670

1шт.

18

KBV15660Y2

HYD TUBE

Replaces KBV15660, BEFORE 240R5N8EAM1246 240R5N8EAM1247 REPLACE BY KBV21200Y2 AND KBV21210Y2

1шт.

18.5

KBV21200Y2

HYD TUBE

, Serial Range: -18

1шт.
