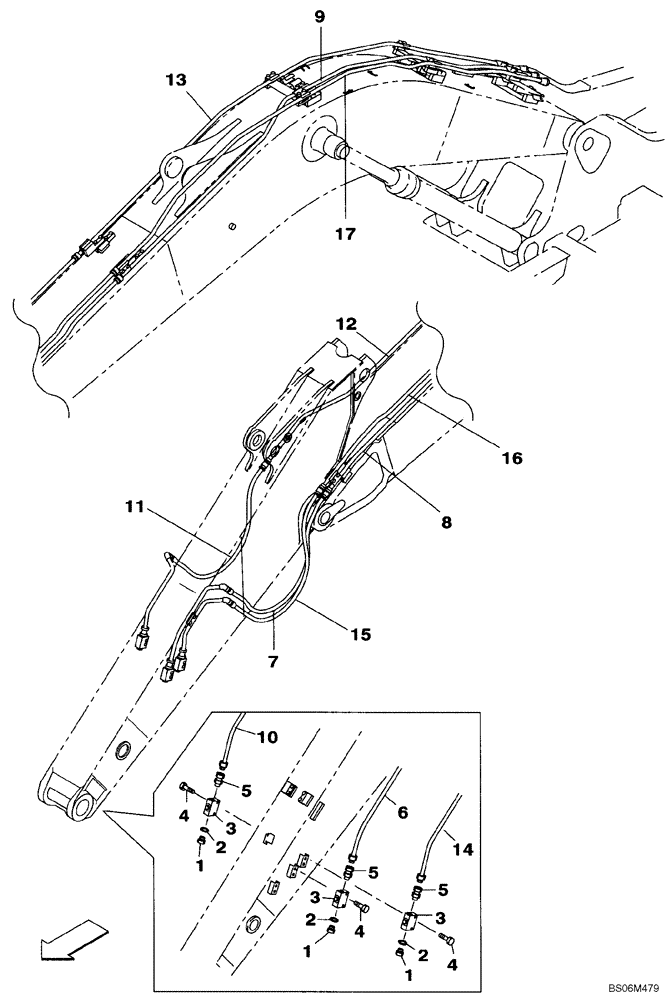

Запчасти Case CX240B (08-041) - SECOND OPTION LINE, 2.5 M ARM (08) - HYDRAULICS

1

159085A1

PLUG

Incl. 2

3шт.

2

154487A1

O-RING

1шт.

3

KHV10440

VALVE

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

5

KHJ1939

FITTING

3шт.

6

KBV17340

HYD TUBE

1шт.

7

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

1шт.

8

KBV15670Y2

HYD TUBE

Replaces KBV15670

1шт.

9

KBV15640Y2

HYD TUBE

Replaces KBV15640, BEFORE 240R5N8EAM1246 240R5N8EAM1247 REPLACE BY KBV21200Y2 AND KBV21210Y2

1шт.

10

KBV17350

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

9.5

KBV21210Y2

HYD TUBE

1шт.

11

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

1шт.

12

KBV15680Y2

HYD TUBE

Replaces KBV15680

1шт.

13

KBV15650Y2

HYD TUBE

Replaces KBV15650

1шт.

14

KBV17360

HYD TUBE,16.1 mm ID x 21.7 mm OD

1шт.

15

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

Replaces KRV19750

1шт.

16

KBV15670Y2

HYD TUBE

Replaces KBV15670

1шт.

17

KBV15660Y2

HYD TUBE

Replaces KBV15660, BEFORE 240R5N8EAM1246 240R5N8EAM1247 REPLACE BY KBV21200Y2 AND KBV21210Y2

1шт.

17.5

KBV21200Y2

HYD TUBE

, Serial Range: -18

1шт.
