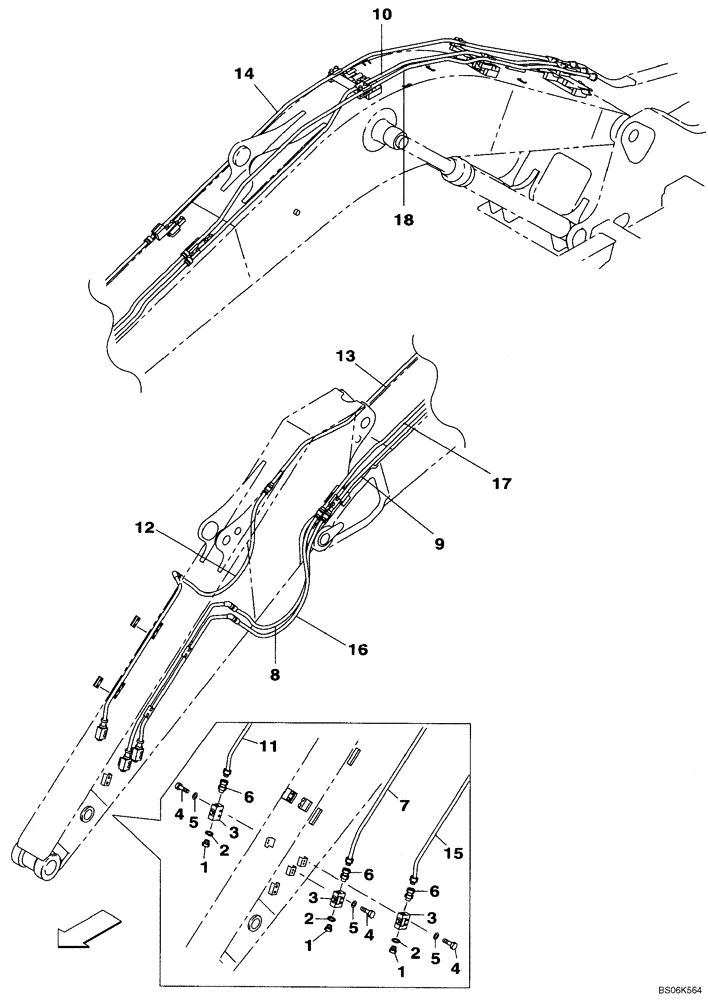

Запчасти Case CX240B (08-040) - SECOND OPTION LINE, 3.0 M ARM (08) - HYDRAULICS

1

159085A1

PLUG

Incl. 2

3шт.

2

154487A1

O-RING

1шт.

3

KHV10670

VALVE SECTION

3шт.

4

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

6шт.

5

150409A1

WASHER

6шт.

6

KHJ1939

FITTING

3шт.

7

KBV15620

HYD TUBE

1шт.

8

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

1шт.

9

KBV15670Y2

HYD TUBE

Replaces KBV15670

1шт.

10

KBV15640Y2

HYD TUBE

Replaces KBV15640, BEFORE 240R5N8EAM1246 240R5N8EAM1247 REPLACE BY KBV21200Y2 AND KBV21210Y2

1шт.

10.5

KBV21210Y2

HYD TUBE

1шт.

11

KBV15630

HYD TUBE

1шт.

12

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

1шт.

13

KBV15680Y2

HYD TUBE

Replaces KBV15680

1шт.

14

KBV15650Y2

HYD TUBE

Replaces KBV15650

1шт.

15

KBV15740

HYD TUBE

1шт.

16

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

Replaces KRV19750

1шт.

17

KBV15670Y2

HYD TUBE

Replaces KBV15670

1шт.

18

KBV15660Y2

HYD TUBE

Replaces KBV15660, BEFORE 240R5N8EAM1246 240R5N8EAM1247 REPLACE BY KBV21200Y2 AND KBV21210Y2

1шт.

18.5

KBV21200Y2

HYD TUBE

, Serial Range: -18

1шт.
