Запчасти Case CX240B (08-039) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

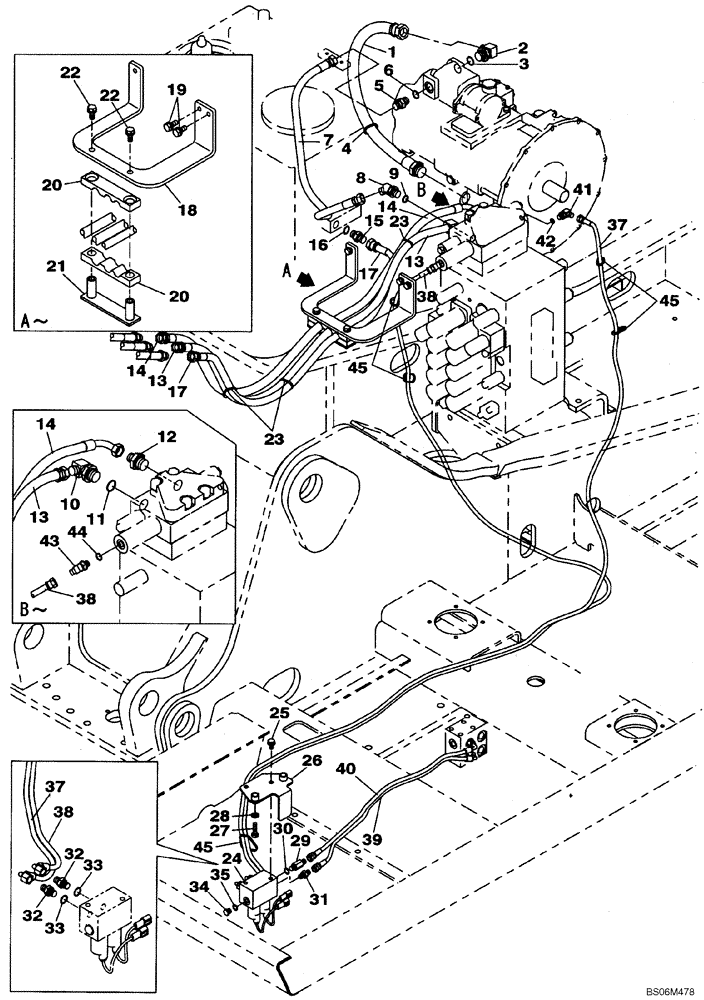

Схема запчастей Case CX240B - (08-039) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS
32
40
22
42
34
12
10
15
26
33
13
22
38
45
32
27
14
20
44
24
37
38
39
18
11
45
13
23
6
28
20
33
5
14
13
17
4
31
38
8
35
3
14
45
30
16
9
21
25
19
7
37
1
23
2
29
17
41
43

Артикул

Название

Примечание

Количество

1

KTJ2249

HYDRAULIC HOSE,25.40 mm ID x 800.00 mm

1шт.

2

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 3

1шт.

3

154523A1

O-RING

1шт.

4

150496A1

MOUNTING CLIP

1шт.

5

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 6

1шт.

6

154487A1

O-RING

1шт.

7

HLV0082

HYDRAULIC HOSE,12.70 mm ID x 1250.00 mm

1шт.

8

157585A1

ELBOW

Incl. 9

1шт.

9

154487A1

O-RING

1шт.

10

157936A1

ELBOW

Incl. 11

1шт.

11

154503A1

O-RING

1шт.

12

168988A1

ADAPTER

1шт.

13

KBJ12420

HYDRAULIC HOSE,12.70 mm ID x 1430.00 mm

1шт.

14

KBJ12440

HYDRAULIC HOSE

1560 mm (61-13/32 in)

1шт.

15

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 16

1шт.

16

154487A1

O-RING

1шт.

17

KBJ12450

HYDRAULIC HOSE,12.70 mm ID x 1580.00 mm

1шт.

18

KBJ12300

SUPPORT

Replaced by KSJ17790

1шт.

18

KSJ17790

SUPPORT

1шт.

19

166052A1

BOLT

3шт.

20

KRJ11580

HOSE CLIP

2шт.

21

KRJ11590

SUPPORT

1шт.

22

166052A1

BOLT

2шт.

23

150496A1

MOUNTING CLIP

3шт.

24

KHJ14000

VALVE SECTION

See Figure 08-083

1шт.

25

166351A1

BOLT,Sems, M10 x 20mm

2шт.

26

KHJ15190

SUPPORT

1шт.

27

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

28

150409A1

WASHER

2шт.

29

162554A1

FITTING

Incl. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

31

161841A1

HYD CONNECTOR

1шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 33

2шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

159002A1

PLUG

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

KHJ12230

HYDRAULIC HOSE

3450 mm (135-13/16 in)

1шт.

38

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

39

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

40

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

41

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 42

1шт.

42

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

43

150933A1

ELBOW

Incl. 44

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

150496A1

MOUNTING CLIP

5шт.

Выбрано товаров: 45
