Запчасти Case CX240B (08-023) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

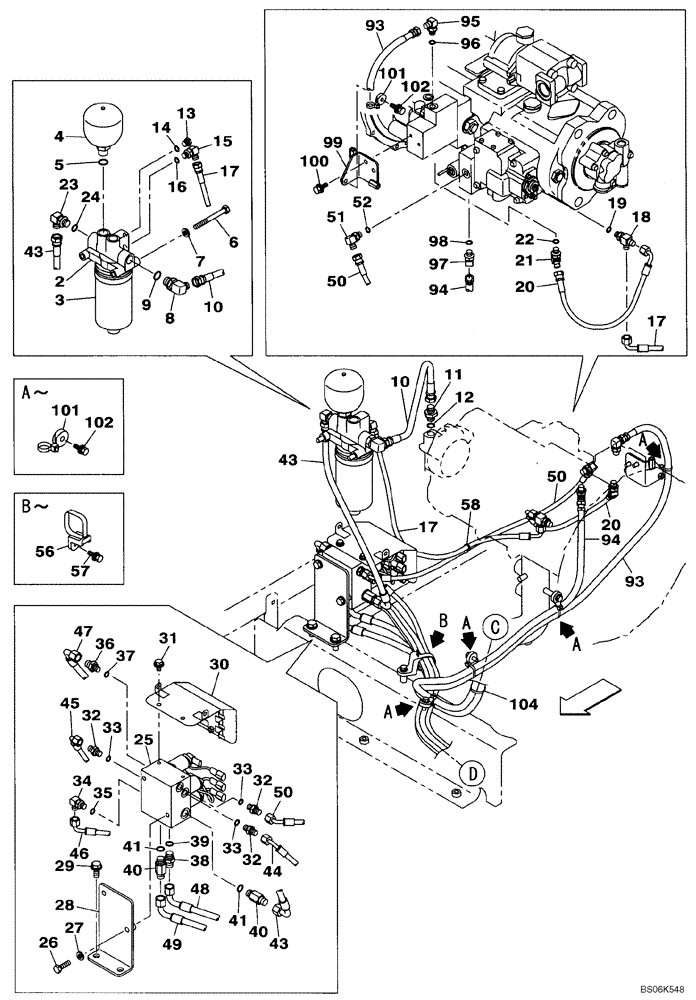

Схема запчастей Case CX240B - (08-023) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS
33
56
48
33
41
14
40
50
98
10
99
21
20
2
12
3
17
9
17
7
17
35
96
22
10
94
102
97
40
38
19
4
94
93
50
5
20
52
15
47
41
23
45
25
101
102
18
44
43
33
95
39
24
36
28
32
29
43
30
57
16
37
43
6
46
100
50
8
34
101
104
51
58
93
49
32
13
11
26
32
31
27

Артикул

Название

Примечание

Количество

KHJ17710

FILTER ASSY

Incl. 2 - 5, Replaces KHJ10930

1шт.

2

KHJ17720

FILTER HEAD

Incl. 3, Replaces KHJ10940

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

Replaces KHJ10950

1шт.

4

KHJ2359

ACCUMULATOR

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

7

150409A1

WASHER

2шт.

8

157935A1

ELBOW

Incl. 9

1шт.

9

154487A1

O-RING

1шт.

10

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

11

161084A1

ADAPTER

Incl. 12

1шт.

12

154487A1

O-RING

1шт.

13

159002A1

PLUG

Incl. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 16

1шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

17

KHJ2036

HOSE

750 mm (29-1/2 in)

1шт.

18

159497A1

TEE

Incl. 19

1шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

20

KHJ2342

HOSE

1шт.

21

150933A1

ELBOW

Incl. 22

1шт.

22

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

23

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 24

1шт.

24

154475A1

O-RING

1шт.

25

KHJ14520

SOLENOID VALVE

See Figure 08-077

1шт.

26

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

27

150409A1

WASHER

2шт.

28

KHJ14960

SUPPORT

1шт.

29

166352A1

BOLT

2шт.

30

KHJ14970

COVER

1шт.

30

KRJ34630

COVER

Replaced KHJ16220

1шт.

31

166345A1

BOLT

2шт.

32

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 33

3шт.

33

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

34

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 35

1шт.

35

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

152747A1

ADAPTER

Incl. 37

1шт.

37

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

38

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 39

1шт.

39

154475A1

O-RING

1шт.

40

159226A1

ADAPTER

Incl. 41

2шт.

41

154475A1

O-RING

1шт.

43

KHJ2148

HOSE

550 mm (21-5/8 in)

1шт.

44

KHJ14920

HYDRAULIC HOSE,6.35 mm ID x 1850.00 mm

1шт.

45

KHJ2097

HOSE

1750 mm (68-7/8 in)

1шт.

46

KHJ2166

HOSE,6.3mm ID x 2300mm L

2300 mm (90-9/16 in)

1шт.

47

KHJ14900

HYDRAULIC HOSE,9.52 mm ID x 2600.00 mm

1шт.

48

KHJ2107

HOSE,9.5mm ID x 2400mm L

2400 mm (94-1/2 in)

1шт.

49

KHJ11530

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

50

KHJ14910

HYDRAULIC HOSE,6.35 mm ID x 800.00 mm

1шт.

51

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 52

1шт.

52

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

56

KHR2581

CLAMP

1шт.

57

KHJ1215

BOLT,Spcl

1шт.

58

150496A1

MOUNTING CLIP

1шт.

93

KHJ1231

HYDRAULIC HOSE,6.35 mm ID x 1800.00 mm

1шт.

94

KHJ12370

HYDRAULIC HOSE,6.35 mm ID x 2650.00 mm

1шт.

95

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 96

1шт.

96

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

150933A1

ELBOW

Incl. 98

1шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

KRJ16150

SUPPORT

1шт.

100

166350A1

BOLT

2шт.

101

KHR2584

CLAMP

4шт.

102

KHJ1215

BOLT,Spcl

4шт.

104

150496A1

MOUNTING CLIP

1шт.

Выбрано товаров: 66
