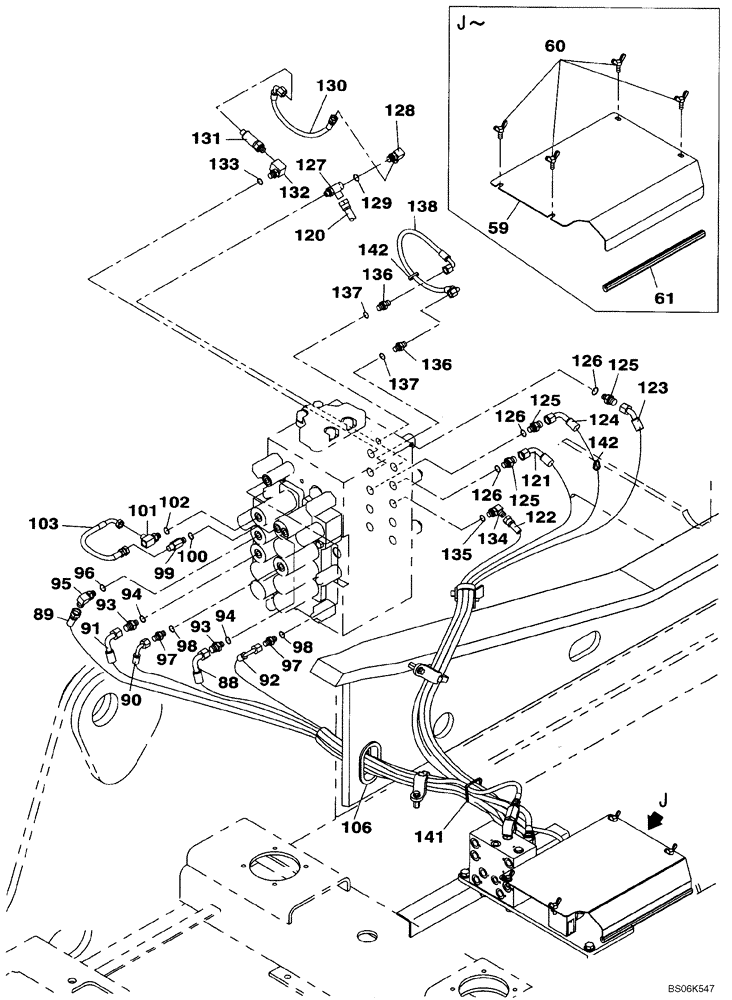

Запчасти Case CX240B (08-022) - PILOT CONTROL LINES, CONTROL VALVE - TWO WAY (08) - HYDRAULICS

59

KRJ12530

COVER

1шт.

60

KHN17030

SPECIAL BOLT

Wing Head

4шт.

61

KRN11120

SEAL PROTECTION

1шт.

88

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

89

KHJ2318

HOSE

1400 mm (55-1/8 in)

1шт.

90

KHJ11540

HYDRAULIC HOSE,6.35 mm ID x 1450.00 mm

1шт.

91

KHJ11570

HYDRAULIC HOSE,9.52 mm ID x 1300.00 mm

1шт.

92

KHJ2327

HOSE

1550 mm (61 in)

1шт.

93

152747A1

ADAPTER

Incl. 94

2шт.

94

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

95

153559A1

ELBOW

Incl. 96

1шт.

96

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

97

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 98

2шт.

98

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

99

162554A1

FITTING

Incl. 100

1шт.

100

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

101

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 102, Replaces KHJ2773

1шт.

102

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

103

KHJ1387

HYDRAULIC HOSE,6.35 mm ID x 320.00 mm

1шт.

106

KRH10610

SEAL PROTECTION

1шт.

120

KHJ15490

HYDRAULIC HOSE

1350 mm (53-1/8 in)

1шт.

121

KHJ11530

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

122

KHJ2054

HOSE

1200 mm (47-3/16 in)

1шт.

123

KHJ11600

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

1шт.

124

KHJ11580

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

1шт.

125

152747A1

ADAPTER

Incl. 126

3шт.

126

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

127

KHJ11560

TEE

1шт.

128

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 129

1шт.

129

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

130

KHJ2084

HOSE

1шт.

131

KHJ1399

VALVE, CUSHION

See Figure 08-075

1шт.

132

KHJ0719

ELBOW

Incl. 133

1шт.

133

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

134

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 135

1шт.

135

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

136

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 137

2шт.

137

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

138

KHJ2350

HOSE

1шт.

141

150498A1

MOUNTING CLIP

1шт.

143

150496A1

MOUNTING CLIP

2шт.
