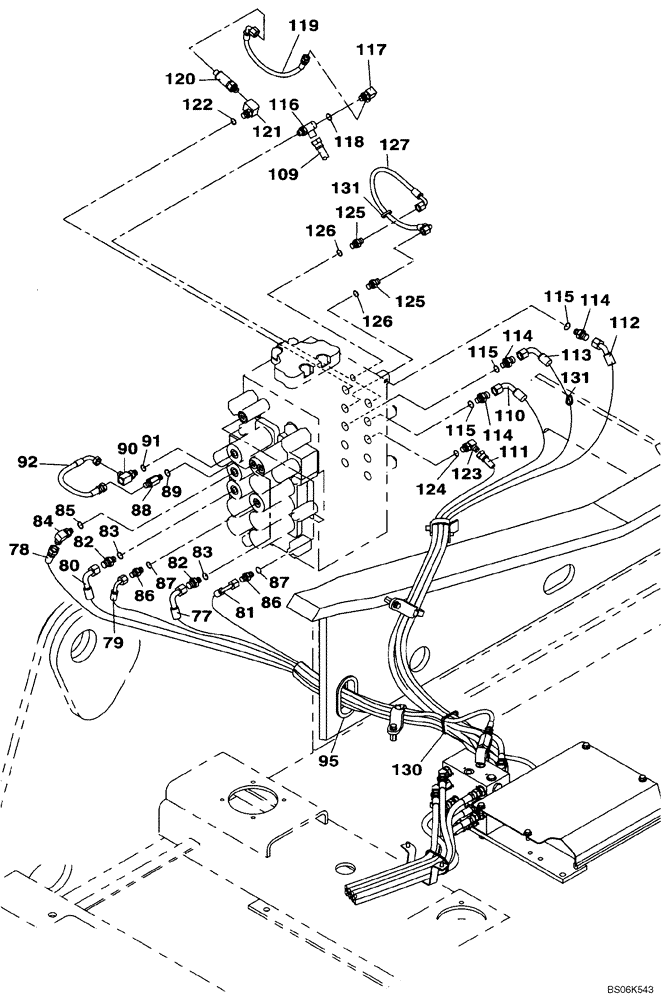

Запчасти Case CX240B (08-018) - PILOT CONTROL LINES, CONTROL VALVE - STANDARD (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
77
KHJ11590
HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm
1шт.
78
KHJ2318
HOSE
1400 mm (55-1/8 in)
1шт.
79
KHJ11540
HYDRAULIC HOSE,6.35 mm ID x 1450.00 mm
1шт.
80
KHJ11570
HYDRAULIC HOSE,9.52 mm ID x 1300.00 mm
1шт.
81
KHJ2327
HOSE
1550 mm (61 in)
1шт.
82
152747A1
ADAPTER
Incl. 83
2шт.
83
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
84
153559A1
ELBOW
Incl. 85
1шт.
85
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
86
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 87
2шт.
87
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
88
162554A1
FITTING
Incl. 89
1шт.
89
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
90
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 91, Replaces KHJ2773
1шт.
91
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
92
KHJ1387
HYDRAULIC HOSE,6.35 mm ID x 320.00 mm
1шт.
95
KRH10610
SEAL PROTECTION
1шт.
109
KHJ15490
HYDRAULIC HOSE
1350 mm (53-1/8 in)
1шт.
110
KHJ11530
HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm
1шт.
111
KHJ2054
HOSE
1200 mm (47-3/16 in)
1шт.
112
KHJ11600
HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm
1шт.
113
KHJ11580
HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm
1шт.
114
152747A1
ADAPTER
Incl. 115
3шт.
115
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
116
KHJ11560
TEE
1шт.
117
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 118
1шт.
118
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
119
KHJ2084
HOSE
350 mm (13-3/4 in)
1шт.
120
KHJ1399
VALVE, CUSHION
See Figure 08-075
1шт.
121
KHJ0719
ELBOW
Incl. 122
1шт.
122
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
123
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
Incl. 123
1шт.
124
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
125
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Incl. 126
2шт.
126
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
127
KHJ2350
HOSE
520 mm (20-1/2 in)
1шт.
130
150498A1
MOUNTING CLIP
1шт.
131
150496A1
MOUNTING CLIP
2шт.
Выбрано товаров: 38
