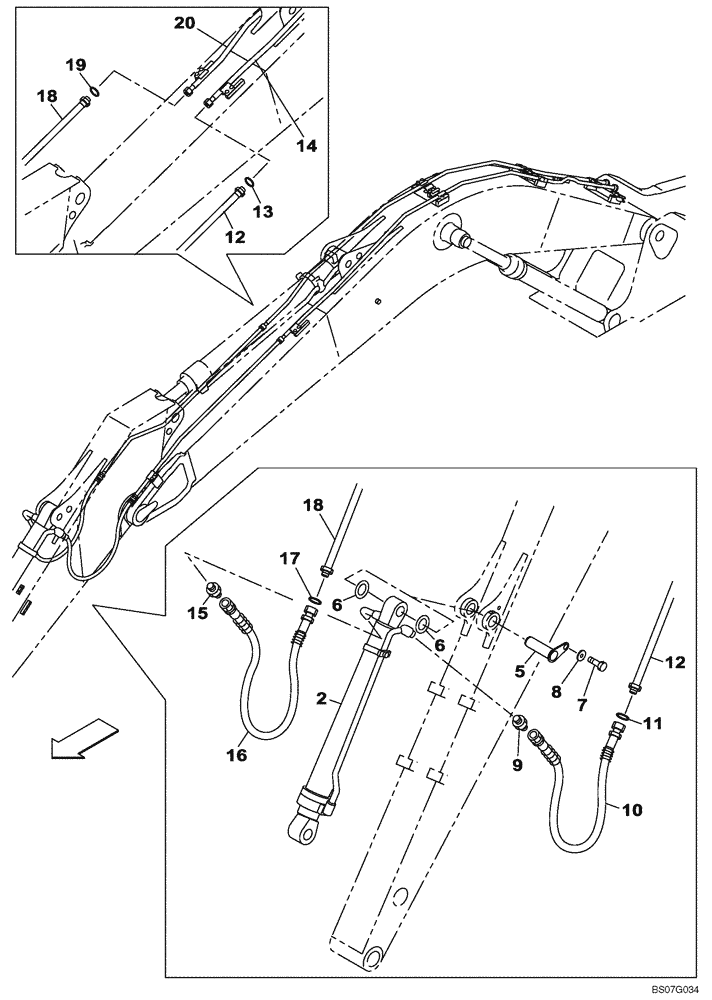

Запчасти Case CX240B (08-014) - HYDRAULIC CIRCUIT - BUCKET CYLINDER - DIPPER (3.00 M) (08) - HYDRAULICS

2

KBV11040

BUCKET CYLINDER

1шт.

2

KBV24080R

REMAN-HYD CYLINDER

CX240B CRAWLER EXCAVATOR TIER 3 (NA), BUCKET CYLINDER, DIPPER (3.00 M) (1/07-), Reman for New PN KBV11040

1шт.

2

KBV24080C

CORE-HYD CYLINDER

Return Number

1шт.

5

KBV11530

PIN

1шт.

6

159741A1

SHIM

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

8

157141A1

WASHER

1шт.

9

KHJ1348

ADAPTER

Replaces KHJ15840

1шт.

10

KRV22580

HYDRAULIC HOSE,22.2mm ID x 1550mm L

Hose

1шт.

11

KHJ1360

O-RING,0.07" Thk x 0.739" ID

Replaces KHJ1361

2шт.

12

KBV18990Y2

HYD TUBE

Left, Replaces KBV15500Y2

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

14

KBV15450Y2

HYD TUBE

Left

1шт.

15

KHJ15840

ADAPTER

1шт.

16

KRV22580

HYDRAULIC HOSE,22.2mm ID x 1550mm L

Hose

1шт.

17

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

18

KBV15510Y2

HYD TUBE,20.8 mm ID x 27.2 mm OD

Right

1шт.

19

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

20

KBV15460Y2

HYD TUBE

Right

1шт.
