Запчасти Case CX210BNLC (08-18) - PILOT CONTROL LINES, CONTROL VALVE - STANDARD (08) - HYDRAULICS

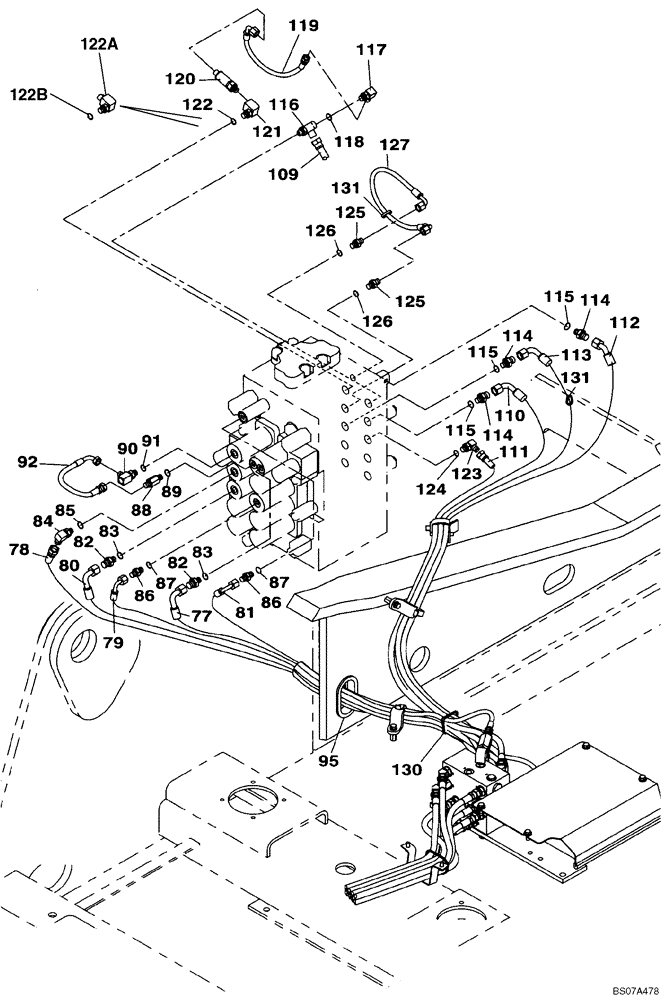

Схема запчастей Case CX210BNLC - (08-18) - PILOT CONTROL LINES, CONTROL VALVE - STANDARD (08) - HYDRAULICS
82
80
84
131
83
114
122
124
83
113
126
87
77
119
123
122b
131
90
89
92
78
115
111
117
114
114
127
122a
86
79
130
91
86
109
82
125
87
88
126
95
81
115
112
110
120
118
125
85
115
116
121

Артикул

Название

Примечание

Количество

77

KHJ11590

HYDRAULIC HOSE,9.52 mm ID x 1400.00 mm

1шт.

78

KHJ2318

HOSE

1400 mm (55-1/8 in)

1шт.

79

KHJ11540

HYDRAULIC HOSE,6.35 mm ID x 1450.00 mm

1шт.

80

KHJ11570

HYDRAULIC HOSE,9.52 mm ID x 1300.00 mm

1шт.

81

KHJ2327

HOSE

1550 mm (61 in)

1шт.

82

152747A1

ADAPTER

Incl. 83

2шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

153559A1

ELBOW

Incl. 85

1шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 87

2шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

88

162554A1

FITTING

Incl. 89

1шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 91, Replaces KHJ2773

1шт.

91

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

92

KHJ1387

HYDRAULIC HOSE,6.35 mm ID x 320.00 mm

1шт.

95

KRH10610

SEAL PROTECTION

1шт.

109

KHJ15490

HYDRAULIC HOSE

1350 mm (53-1/8 in)

1шт.

110

KHJ11530

HYDRAULIC HOSE,9.52 mm ID x 1250.00 mm

1шт.

111

KHJ2054

HOSE

1200 mm (47-3/16 in)

1шт.

112

KHJ11600

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

1шт.

113

KHJ11580

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

1шт.

114

152747A1

ADAPTER

Incl. 115

3шт.

115

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

116

KHJ11560

TEE

1шт.

117

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 118

1шт.

118

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

119

KHJ2084

HOSE

1шт.

120

KHJ1399

VALVE, CUSHION

See Figure 08-70; If Used

1шт.

121

KHJ0719

ELBOW

Incl. 122; Used With Ref 120

1шт.

122

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

122a

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 122B; Used In Place Of Ref 120 - 122

1шт.

122b

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

123

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 123

1шт.

124

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

125

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 126

2шт.

126

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

127

KHJ2350

HOSE

1шт.

130

150498A1

MOUNTING CLIP

1шт.

131

150496A1

MOUNTING CLIP

2шт.

Выбрано товаров: 40
