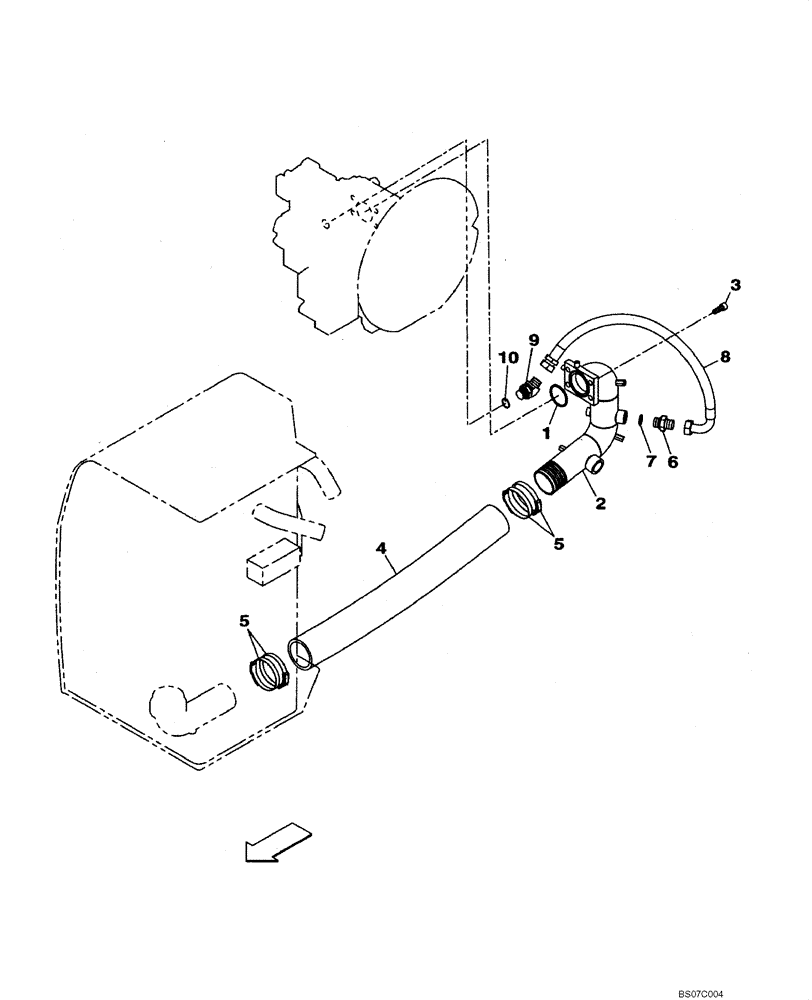

Запчасти Case CX210BNLC (08-05) - HYDRAULICS - PUMP SUCTION LINE (08) - HYDRAULICS

1

154681A1

O-RING

1шт.

2

KRJ17820

HYD TUBE

1шт.

3

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

4шт.

4

KHJ15530

HYDRAULIC HOSE,76.30 mm ID x 790.00 mm

1шт.

5

150905A1

CLAMP

4шт.

6

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl. 7

1шт.

7

154503A1

O-RING

1шт.

8

KRJ11180

HYDRAULIC HOSE,19.00 mm ID x 520.00 mm

1шт.

9

157586A1

ELBOW

Incl. 10

1шт.

10

154503A1

O-RING

1шт.
