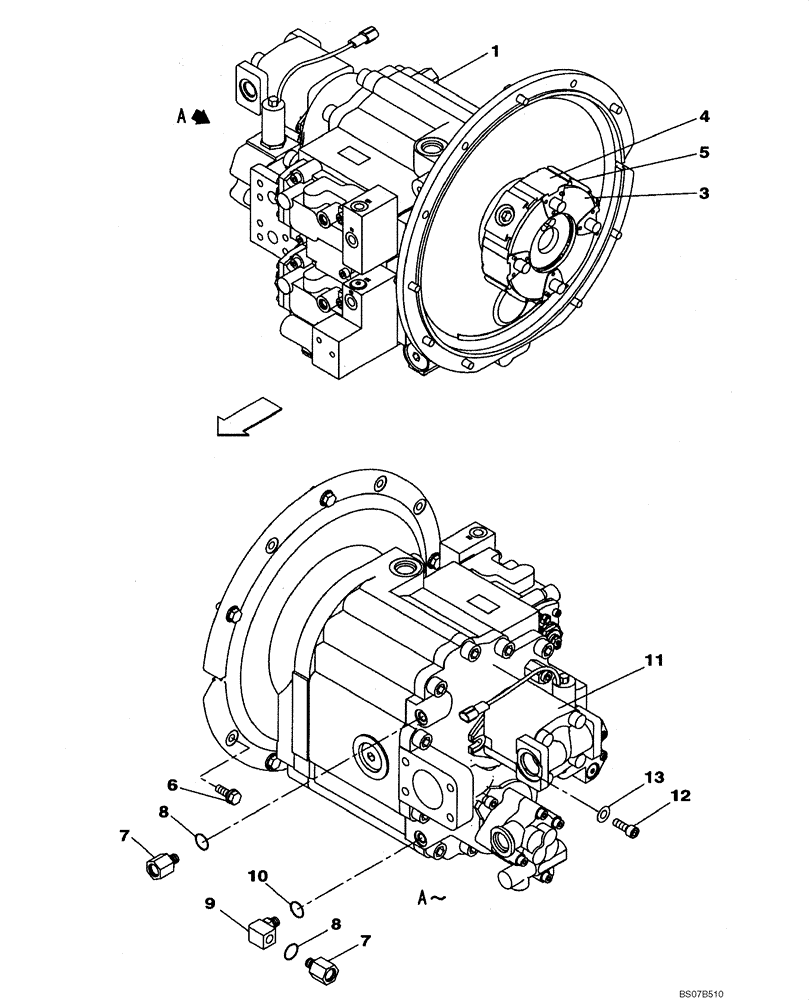

Запчасти Case CX210BNLC (08-04) - PUMP ASSY, HYDRAULIC - WITH AUXILIARY HYDRAULIC - COUPLING (08) - HYDRAULICS

1

KRJ17130

HYDRAULIC PUMP

See Figure 08-87 - 08-91

1шт.

KRJ10340

COUPLING

Incl. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Element

1шт.

4

NSS

NOT SOLD SEPARAT

Insert

4шт.

5

NSS

NOT SOLD SEPARAT

Insert

1шт.

6

166347A1

BOLT,Sems, M10 x 30mm

6-7шт.

7

KHJ18180

STUD

Incl. 8, Replaces KHJ11380

2шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

KHJ0719

ELBOW

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

KRJ10300

HYDRAULIC PUMP

See Figure 08-97

1шт.

11

KRJ10300R

REMAN-HYD PUMP

CX210BNLC CRAWLER EXCAVATOR TIER 3 (NA), WITH AUXILIARY HYDRAULIC - COUPLING (1/07-)

1шт.

11

KRJ10300C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

862-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

2шт.

13

150409A1

WASHER

2шт.

14

154697A1

O-RING

Not Illustrated

1шт.
