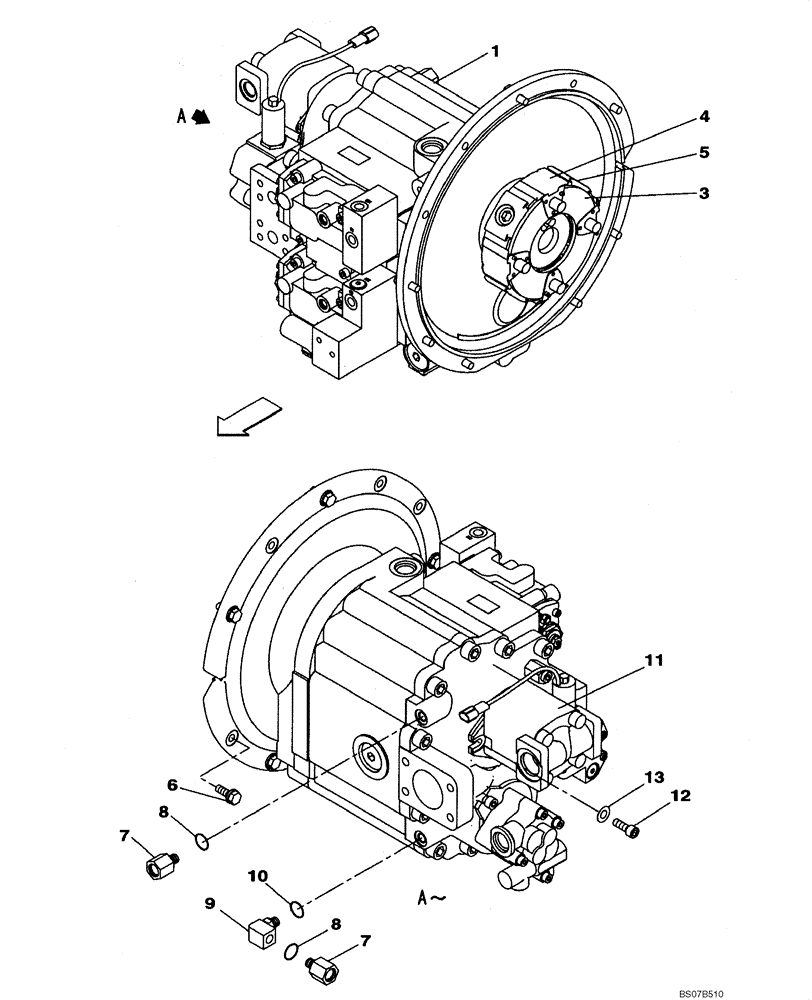

Запчасти Case CX210BNLC (08-03) - PUMP ASSY, HYDRAULIC - STANDARD - COUPLING (08) - HYDRAULICS

1

KRJ17130

HYDRAULIC PUMP

See Figure 08-87 - 08-91

1шт.

KRJ10340

COUPLING

Incl. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Element

1шт.

4

NSS

NOT SOLD SEPARAT

Insert, Coupling

4шт.

5

NSS

NOT SOLD SEPARAT

Insert, Coupling

1шт.

6

166347A1

BOLT,Sems, M10 x 30mm

6-7шт.

7

KHJ18180

STUD

Incl. 8, Replaces KHJ11380

2шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

9

KHJ0719

ELBOW

Incl. 10

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
