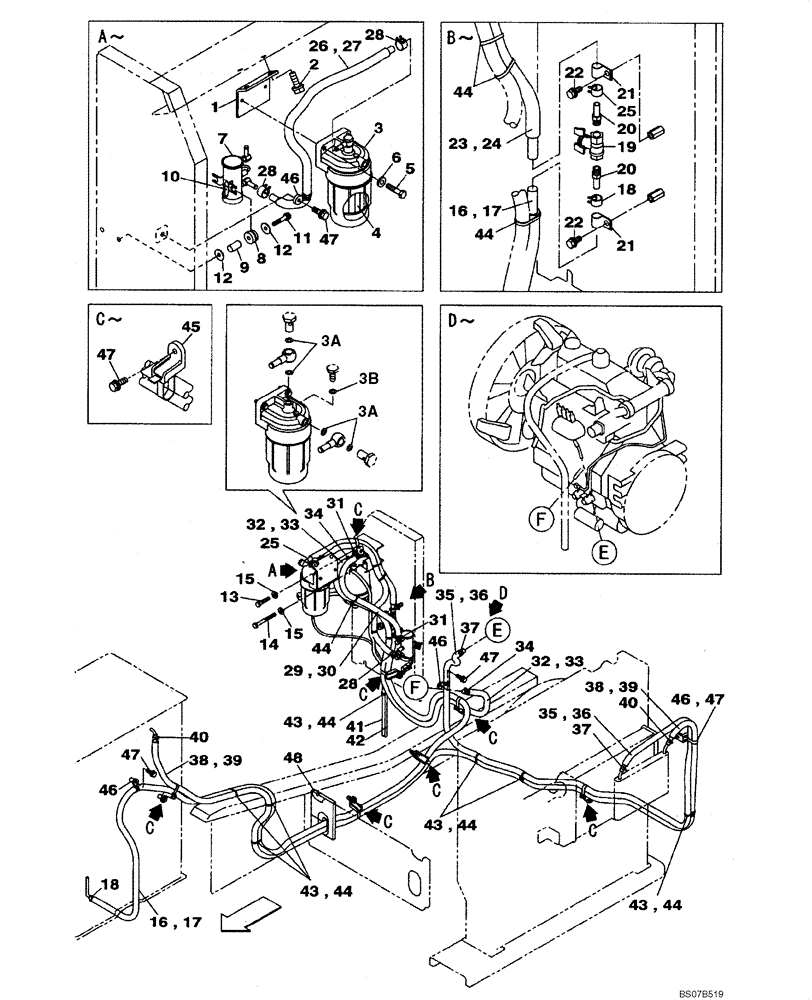

Запчасти Case CX210BNLC (03-02) - FUEL LINES (03) - FUEL SYSTEM

1

KRH11450

SUPPORT

1шт.

2

166347A1

BOLT,Sems, M10 x 30mm

2шт.

3

KHH12020

FILTER ASSY

Incl. 3A - 4C, Replaces KHH10550

1шт.

3a

158678A1

GASKET

4шт.

3b

158676A1

GASKET

1шт.

4

KHH12030

FUEL FILTER

Incl. 4A, 4B, Replaces KHH10590

1шт.

4a

LBQ5245

O-RING

Not Illustrated

1шт.

4b

KHH10600

GASKET

Not Illustrated

1шт.

4c

155467A1

PLUG, DRAIN

Not Illustrated

1шт.

5

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

6

153081A1

WASHER

2шт.

7

KHH11880

FEED PUMP

Pump, Fuel Feed; Incl. 8 - 10A

1шт.

8

KHH10470

GROMMET

2шт.

9

KHH10480

COLLAR

2шт.

10

KHH11890

FILTER SCREEN

Filter

1шт.

10a

KHH11900

GASKET

Gasket; Not Illustrated

1шт.

11

162057A1

BOLT,Spcl, M6 x 35mm

2шт.

12

150529A1

WASHER

4шт.

13

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

14

102R008Y075R

BOLT

1шт.

15

153081A1

WASHER

3шт.

16

KHH11500

FUEL HOSE,9.70 mm ID x 4400.00 mm

1шт.

17

KHR10720

PLASTIC-RUBBER TUBE

1шт.

18

KHH0405

MOUNTING CLIP

2шт.

19

158923A1

DRAIN VALVE

1шт.

20

157929A1

FITTING

2шт.

21

162148A1

CLIP

2шт.

22

KHJ1215

BOLT,Spcl

2шт.

23

KHH11490

FUEL HOSE,9.70 mm ID x 650.00 mm

1шт.

24

150488A1

PLASTIC-RUBBER TUBE

1шт.

25

KHH0405

MOUNTING CLIP

2шт.

26

KHH11470

FUEL HOSE,9.70 mm ID x 850.00 mm

1шт.

27

158061A1

PLASTIC-RUBBER TUBE

1шт.

28

KHH0405

MOUNTING CLIP

2шт.

29

KHH11460

FUEL HOSE,9.70 mm ID x 600.00 mm

1шт.

30

158060A1

PLASTIC-RUBBER TUBE

1шт.

31

KHH0405

MOUNTING CLIP

2шт.

32

KHH11320

HYDRAULIC HOSE,9.70 mm ID x 1900.00 mm

1шт.

33

KHR3052

PLASTIC-RUBBER TUBE

1шт.

34

KHH0405

MOUNTING CLIP

2шт.

35

KHH11300

FUEL HOSE,9.50 mm ID x 3100.00 mm

1шт.

36

158069A1

PLASTIC-RUBBER TUBE

1шт.

37

KHH0405

MOUNTING CLIP

2шт.

38

KHH11480

FUEL HOSE,9.70 mm ID x 4500.00 mm

1шт.

39

KHR15770

PLASTIC-RUBBER TUBE

1шт.

40

KHH0405

MOUNTING CLIP

2шт.

41

KHH11510

PLASTIC-RUBBER TUBE

1шт.

42

KHH10970

PLASTIC-RUBBER TUBE,7 mm ID x 11 mm OD

1шт.

43

KHR10220

MOUNTING CLIP

7шт.

44

150496A1

MOUNTING CLIP

11шт.

45

KHR2581

CLAMP

8шт.

46

KHR2584

CLAMP

3шт.

47

KHJ1215

BOLT,Spcl

11шт.

48

KRH11970

SEAL

1шт.
