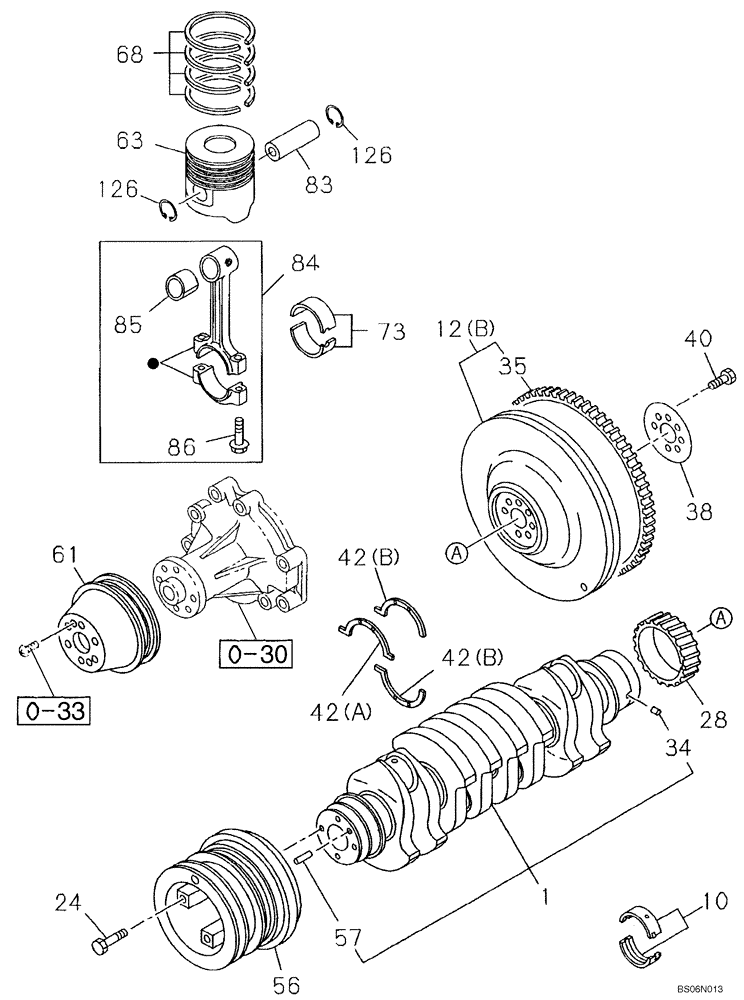

Запчасти Case CX210BNLC (02-18) - PISTONS AND CRANKSHAFT (02) - ENGINE

0-30

REF

INSTRUCTION

See Figure 02-24

1шт.

0-33

REF

INSTRUCTION

See Figure 02-27

1шт.

1

87595954

CRANKSHAFT

Incl. 34, 57

1шт.

10

87379566

SET OF STD MAIN BRGS,Half Round, 87mm OD x 27.2mm W x 2.522-2.526mm Thk

Blue

5шт.

10

87379569

SET OF STD MAIN BRGS,Half Round, 87mm OD x 27.2mm W x 2.518-2.522mm Thk

Black

5шт.

10

87379572

SET OF STD MAIN BRGS,Half Round, 87mm OD x 27.2mm W x 2.514-2.518mm Thk

Brown

5шт.

12b

87629465

ENGINE FLYWHEEL

Incl. 35; Replaces 87595957

1шт.

24

87595958

BOLT

4шт.

28

87378184

IDLER GEAR

1шт.

34

419830A1

SMALL PIN

1шт.

35

288796A1

RING GEAR

1шт.

38

438140A1

WASHER

1шт.

40

87595960

BOLT

8шт.

42a

72109614

WASHER

1шт.

42b

72109615

WASHER

2шт.

56

87595996

PULLEY

1шт.

57

87595999

PIN

2шт.

61

87596001

PULLEY

1шт.

63

87378185

PISTON

Grade= Non

4шт.

68

87378526

PISTON RINGS KIT

4шт.

73

87738592

CRANKSHAFT BEARING,Half Round, 78mm OD x 30.3mm W x 2.507-2.513mm Thk

Replaces 72216743

4шт.

73

87477008

CRANKSHAFT BEARING,Half Round, 78mm OD x 30.3mm W x 2.511-2.517mm Thk

Green, Replaces 438113A1

6шт.

83

72109620

PISTON PIN

4шт.

84

87387355

PITMAN ASSY.

Incl. 85, 86

4шт.

85

438097A1

BRONZE BUSHING

BRONZE BUSH

4шт.

86

437902A1

BOLT

8шт.

126

437874A1

CIRCLIP

8шт.
