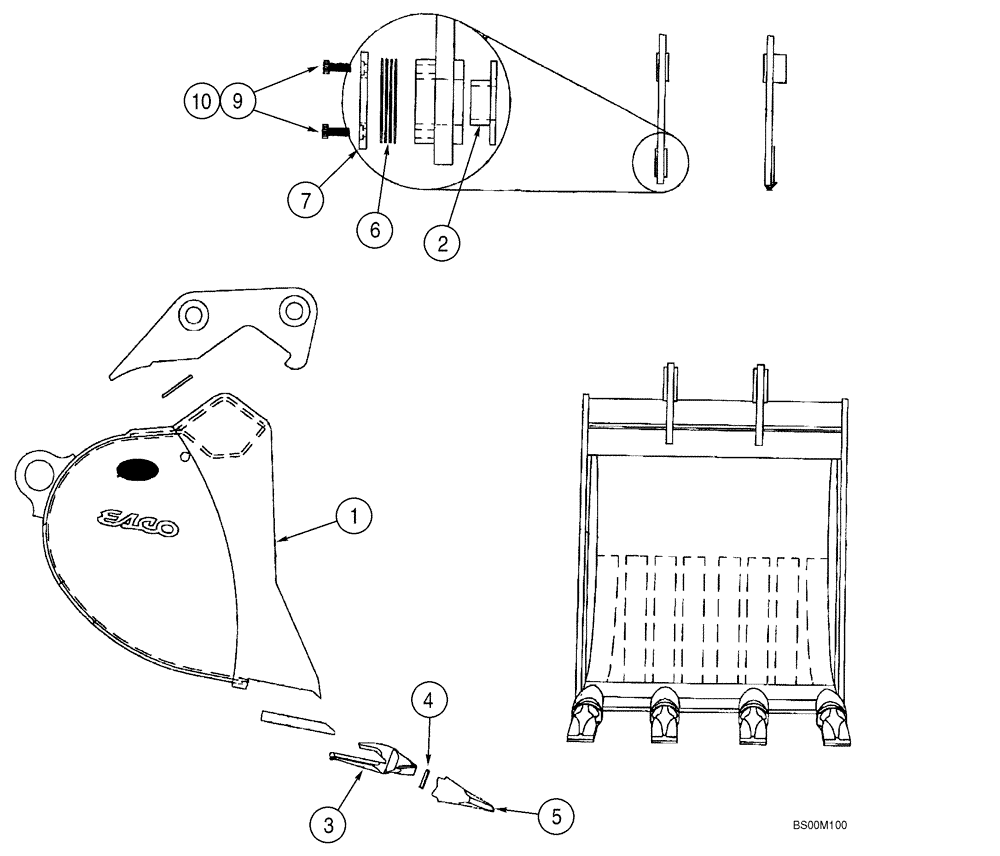

Запчасти Case CX210BNLC (09-45) - BUCKETS, ESCO - GENERAL PURPOSE BUCKETS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

Bucket, 0,50 cu m (0,65 cu yd); With 4 Teeth

1шт.

1

REF

INSTRUCTION

Bucket, 0,66 cu m (0,87 cu yd); With 4 Teeth

1шт.

2

372027A1

ADAPTER

1шт.

3

127557A1

ADAPTER

Tooth

4шт.

4

233792A1

BUCKET TOOTH KEY

4шт.

5

127558A1

BUCKET TOOTH

4шт.

6

378626A1

SHIM

6шт.

7

378627A1

PLATE

1шт.

8

378628A1

PIN

Not Illustrated

2шт.

9

892-11012

LOCK WASHER,M12

4шт.

10

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

378641A1

KIT

Incl. 2, 6 - 10

1шт.
