(09-42) - BUCKET CYLINDER - MOUNTING

Запчасти Case CX210BNLC (09-42) - BUCKET CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS

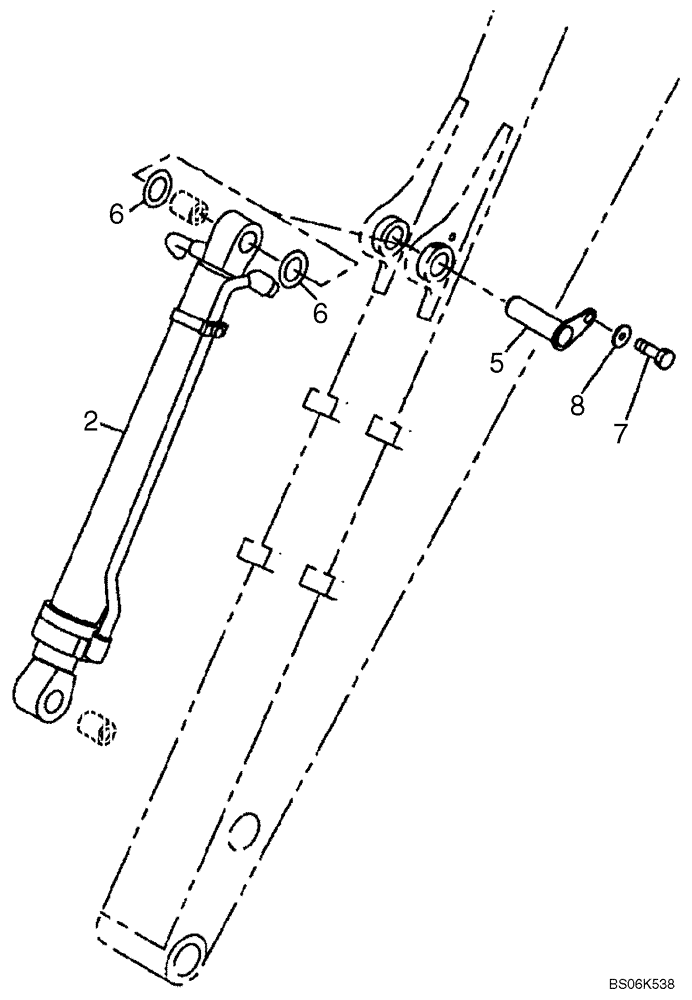

Схема запчастей Case CX210BNLC - (09-42) - BUCKET CYLINDER - MOUNTING (09) - CHASSIS/ATTACHMENTS
6
5
8
7
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

KRV19640

BUCKET CYLINDER

See Figure 08-86

1шт.

2

KRV33010R

REMAN-HYD CYLINDER

CX210BNLC CRAWLER EXCAVATOR TIER 3 (NA), MOUNTING (1/07-), Reman for New PN KRV19640

1шт.

2

KRV33010C

CORE-HYD CYLINDER

Return Number

1шт.

5

KRV10990

PIN

1шт.

6

160452A1

SHIM

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

8

157141A1

WASHER

1шт.
