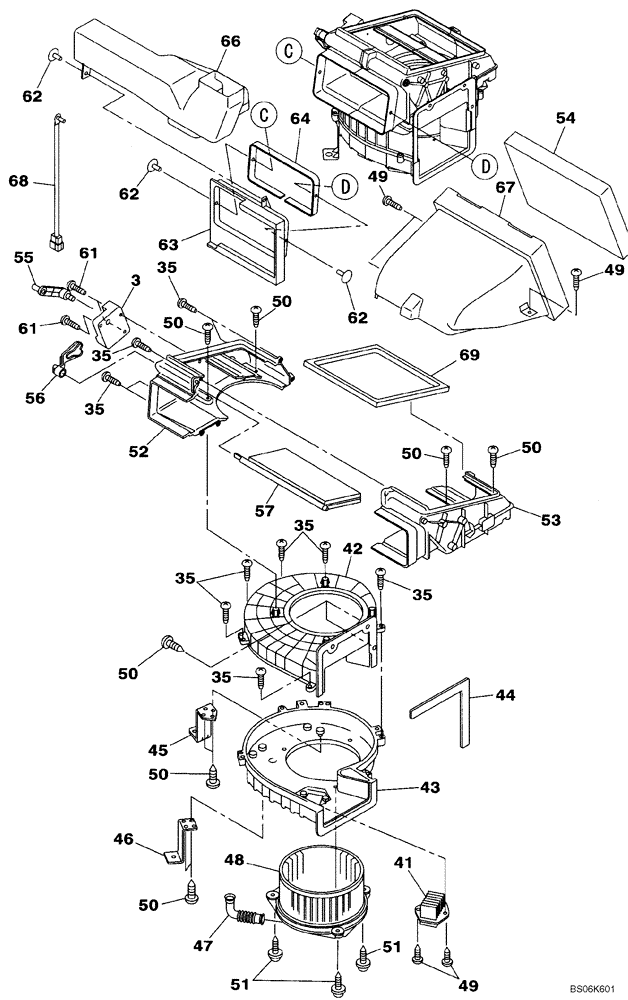

Запчасти Case CX210BNLC (09-22) - AIR CONDITIONING - EVAPORATOR (09) - CHASSIS/ATTACHMENTS

KHR13320

AIR CONDITIONER

Incl. 3 - 69; Also Includes Parts On Figure 09-21

1шт.

3

KHR13610

ELECTRIC MOTOR

1шт.

35

KHR2857

SELF-TAP SCREW

12шт.

41

KHR13730

ECU

1шт.

42

KHR2841

HOUSING

1шт.

43

KHR2842

HOUSING

1шт.

44

KHR15870

STRIP-GASKET

1шт.

45

KHR2860

BRACKET

1шт.

46

KHR2843

BRACKET

1шт.

47

KHR2844

HOSE

1шт.

48

KHR2845

MOTOR, ELECTRIC

1шт.

49

KHR2855

SCREW

5шт.

50

KHR2856

SCREW

12шт.

51

KHR2858

SCREW

3шт.

52

KHR13740

BOX

1шт.

53

KHR13750

BOX

1шт.

54

KHR13330

CAB FILTER

1шт.

55

KHR13760

LEVER

1шт.

56

KHR13770

LEVER

1шт.

57

KHR2851

SHUTTER

1шт.

61

KHR15880

SELF-TAP SCREW

3шт.

62

KHR2773

COLLAR

3шт.

63

KHR2771

DUCT

1шт.

64

KHR3229

GASKET

1шт.

66

KHR13260

AIR DUCT

1шт.

67

KHR13170

AIR DUCT

1шт.

68

KHR13790

SENSOR

1шт.

69

KHR15890

STRIP-GASKET

1шт.
