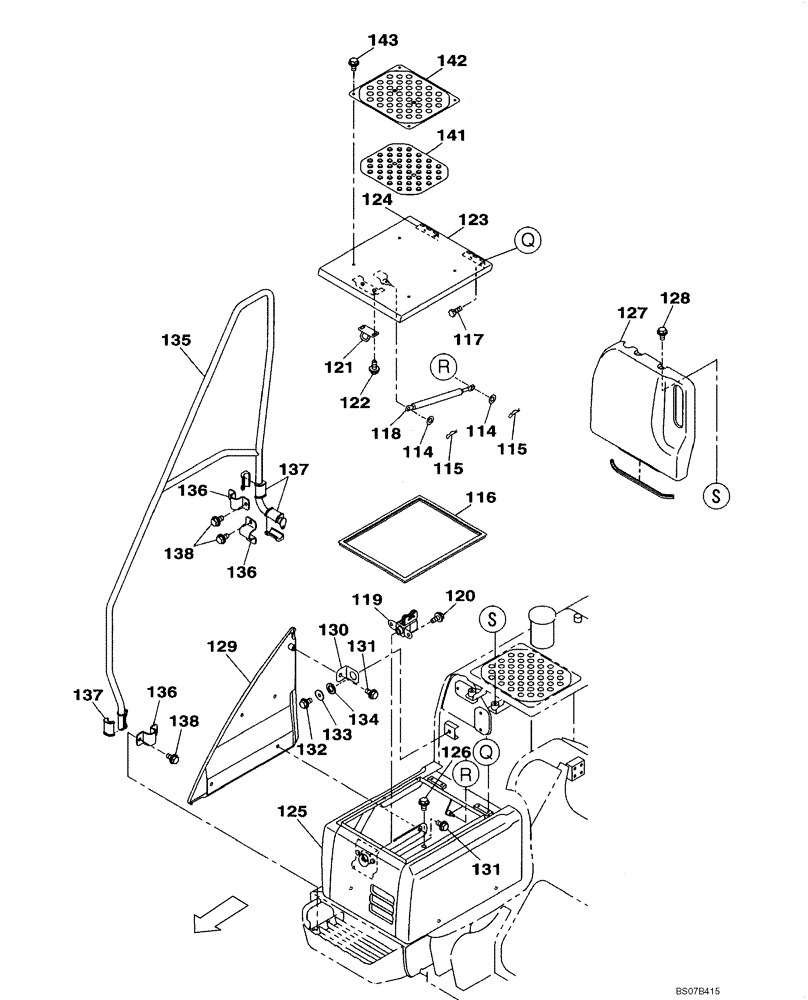

Запчасти Case CX210BNLC (09-08) - STORAGE BOX - INSULATION (09) - CHASSIS/ATTACHMENTS

114

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

115

153077A1

COTTER PIN

2шт.

116

KRN16040

SEALING STRIP

Replaces 159116A1

1шт.

117

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

4шт.

118

KHN13720

GAS STRUT

1шт.

119

KHN12730

LOCK

1шт.

120

166351A1

BOLT,Sems, M10 x 20mm

2шт.

121

KHN12740

SUPPORT

1шт.

122

166350A1

BOLT

2шт.

123

KRN12980G1

COVER

Incl. 124

1шт.

124

KHN3390

HINGE

2шт.

125

KRN12970G1

COVER

1шт.

126

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

127

KNN10390G1

COVER

1шт.

128

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

129

KHN12710Y2

COVER

1шт.

130

KHN12720

SUPPORT

1шт.

131

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

132

166352A1

BOLT

1шт.

133

162409A1

WASHER

1шт.

134

KHN2061

WASHER

1шт.

135

KHN12681B1

STAY

Replaces KHN12680B1

1шт.

136

KHN12690

COLLAR

3шт.

137

KHN12700

COLLAR

6шт.

138

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

141

KHN10940

RUBBER PAD

1шт.

142

KHN13510B1

COVER

1шт.

143

KHN13540

BOLT,Spcl

4шт.

165

KRN10750

SEAL PROTECTION

1шт.
