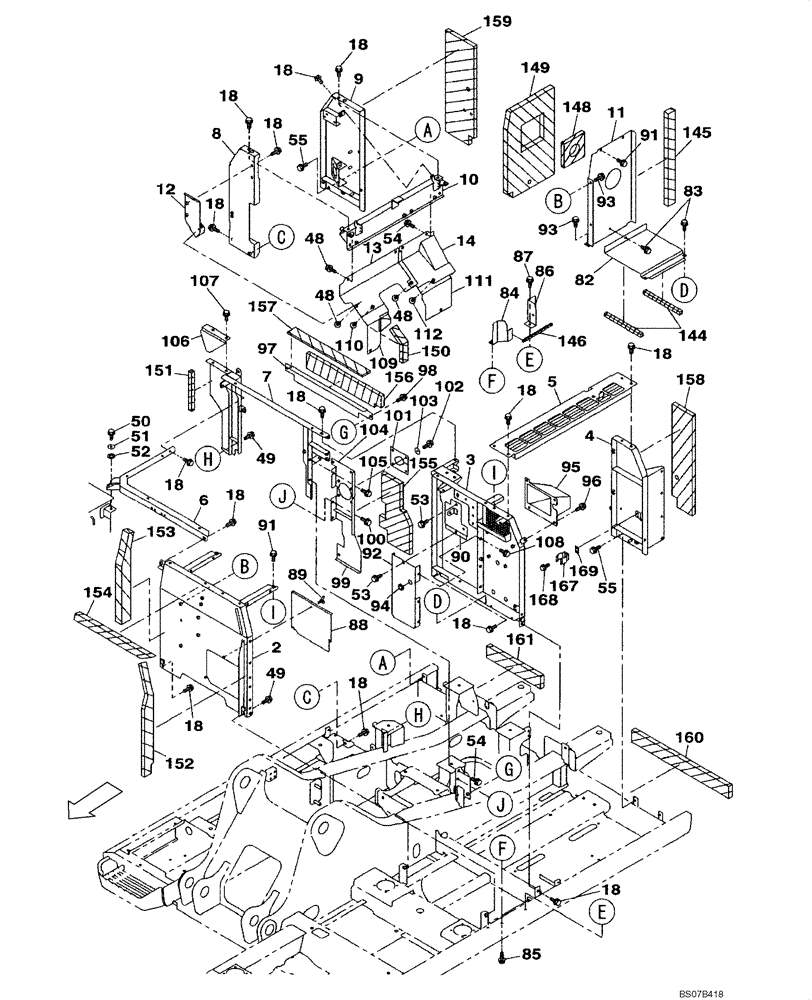

Запчасти Case CX210BNLC (09-05) - FRAMES, COVERS - INSULATION (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
UPPER STRUCTURE
1шт.
2
KRN14700
SUPPORT ASSY.
1шт.
3
KRN14781
SUPPORT ASSY.
SUPPORT ASSY., Replaces KRN15570
1шт.
4
KRN13080
SUPPORT ASSY.
1шт.
5
KRN15560G1
SIEVE
1шт.
6
KRN13300
SUPPORT ASSY.
1шт.
7
KRN14590
SUPPORT ASSY.
1шт.
8
KRN15580
SUPPORT ASSY.
UNTIL P.I.N. N8EAJ1230 / N8EAL1147 / N8SAJxxxx
1шт.
8
KRN17700
SUPPORT ASSY.
SINCE P.I.N. N8EAJ1231 / N8EAL1148 / N8SAJxxxx
1шт.
9
KRN13110
SUPPORT ASSY.
UNTIL P.I.N. N8EAJ1230 / N8EAL1147 / N8SAJxxxx
1шт.
10
KRN13120
SUPPORT ASSY.
1шт.
9
KRN17690
SUPPORT ASSY.
SINCE P.I.N. N8EAJ1231 / N8EAL1148 / N8SAJxxxx
1шт.
11
KRN14760
COVER
1шт.
12
KRN13220
COVER
1шт.
13
KRN15590
COVER
1шт.
14
KRN15600
COVER
1шт.
18
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
32шт.
48
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
49
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
50
166352A1
BOLT
1шт.
51
162409A1
WASHER
1шт.
52
KHN2061
WASHER
1шт.
53
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
54
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
55
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
82
KRN12600
COVER
1шт.
83
166350A1
BOLT
3шт.
84
KRN11090
COVER
1шт.
85
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
86
KRN11100
COVER
1шт.
87
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
88
KHN12760
COVER
1шт.
89
KHN17030
SPECIAL BOLT
Wing
3шт.
90
KRN14620
COVER
1шт.
91
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
92
KRN14750
COVER
1шт.
93
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
5шт.
94
159656A1
GROMMET
1шт.
95
KRN14741
COVER
Replaces KRN14740
1шт.
96
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
97
KRN10530
COVER
1шт.
98
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
99
KRN14660
COVER
1шт.
100
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
101
KRN14670
RUBBER PAD
1шт.
102
166350A1
BOLT
Replaces 167182A1
4шт.
103
163356A1
WASHER
4шт.
104
KRN14650
COVER
1шт.
105
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
3шт.
106
KRN14580
COVER
1шт.
107
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
108
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
4шт.
109
KRN13250
COVER
1шт.
110
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
111
KRN13260
COVER
1шт.
112
152718A1
BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9
2шт.
144
KRN10700
SEAL
2шт.
145
KRN10710
SEAL
1шт.
146
KRN11110
SEAL
1шт.
148
KRN12750
SEAL
1шт.
149
KRN14770
NOISE PROTECTION
1шт.
150
KRN12760
SEAL
1шт.
151
KRN14680
SEAL
1шт.
152
KRN14690
SEAL
1шт.
153
KRN14200
SEAL
1шт.
154
KRN14210
SEAL
1шт.
155
KRN10770
SEAL
1шт.
156
KRN10780
SEAL
1шт.
157
KRN10790
NOISE PROTECTION
1шт.
158
KRN13360
SEAL
1шт.
159
KRN13370
SEAL
1шт.
160
KRN14150
SEAL
1шт.
161
KRN14170
SEAL
1шт.
167
152772A1
HOLDER
Grease Gun
1шт.
168
166350A1
BOLT
2шт.
169
KHN3548
PLATE
1шт.
Выбрано товаров: 76
