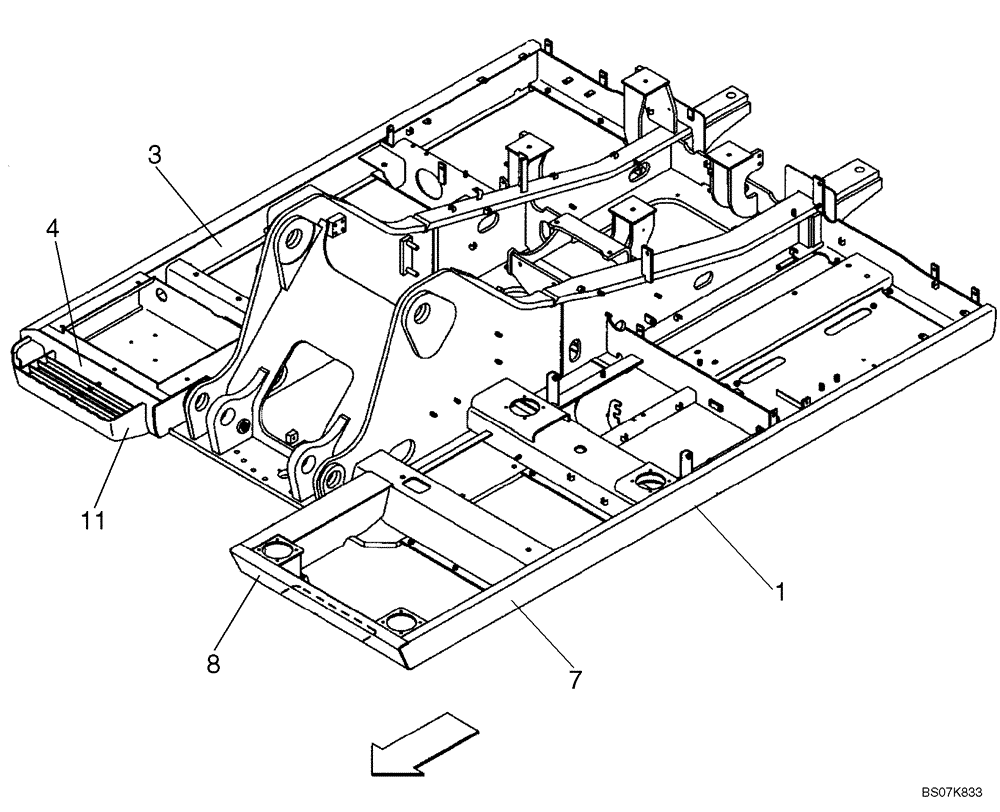

Запчасти Case CX210BNLC (09-02) - TURNTABLE (09) - CHASSIS/ATTACHMENTS

1

KRB13230

FRAME

Revolving, SERVICE ONLY - UNTIL N8EAJ1230 / N8EAL1147 / N8SAJxxxx

1шт.

3

KBB11100

SIDE MEMBER,3510mm L

PLATE FORMED, RIGHT SIDE, May Need To Be Cut To Length

1шт.

1

KRB17100

FRAME

FRAME, Revolving, SERVICE ONLY - SINCE N8EAJ1230 / N8EAL1147 / N8SAJxxxx

1шт.

4

KRB10330

SIDE MEMBER

PLATE FORMED, RIGHT FRONT, May Need To Be Cut To Length

1шт.

7

KBB11060

SIDE MEMBER,4098mm L

PLATE FORMED, LEFT SIDE, May Need To Be Cut To Length

1шт.

8

KRB12700

SIDE MEMBER

PLATE FORMED, LEFT FRONT

1шт.

11

KNB11320

STEP

1шт.
