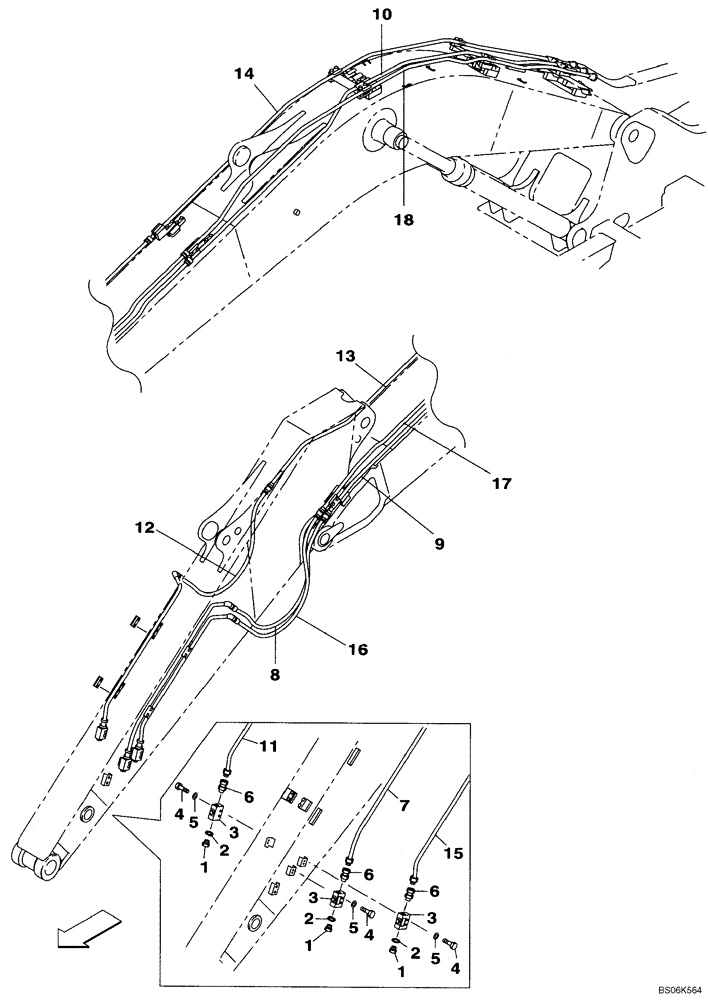

Запчасти Case CX210BNLC (08-40) - SECOND OPTION LINE, 2.9 M ARM (WITH 16MM TUBE) (08) - HYDRAULICS

1

159085A1

PLUG

Incl. 2

3шт.

2

154487A1

O-RING

1шт.

3

KHV10440

VALVE

Replaces KHV10670

3шт.

4

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

Replaces 827-10055

6шт.

5

150409A1

WASHER

If Used

6шт.

6

KHJ1939

FITTING

3шт.

7

KRV23260

HYD TUBE,16.1 mm ID x 21.7 mm OD

Replaces KRV19200

1шт.

8

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

Replaces KNV14100

1шт.

9

KRV19180Y2

HYD TUBE

Replaces KRV19180 (16mm ID x 21.7mm OD)

1шт.

10

KRV19150Y2

HYD TUBE

Replaces KRV19150 (16mm ID x 21.7mm OD)

1шт.

11

KRV23270

HYD TUBE,16.1 mm ID x 21.7 mm OD

Replaces KRV19210

1шт.

12

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

Replaces KNV14100

1шт.

13

KRV19190Y2

HYD TUBE

Replaces KRV19190 (16mm ID x 21.7mm OD)

1шт.

14

KRV19160Y2

HYD TUBE

Replaces KRV19160 (16mm ID x 21.7mm OD)

1шт.

15

KRV23280

HYD TUBE,16.1 mm ID x 21.7 mm OD

Replaces KRV19220

1шт.

16

KRV22550

HYDRAULIC HOSE,12.70 mm ID x 1500.00 mm

Replaces KRV19750

1шт.

17

KRV19180Y2

HYD TUBE

Replaces KRV19180 (16mm ID x 21.7mm OD)

1шт.

18

KRV19170Y2

HYD TUBE

Replaces KRV19170 (16mm ID x 21.7mm OD)

1шт.
