Запчасти Case CX210BNLC (08-39) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

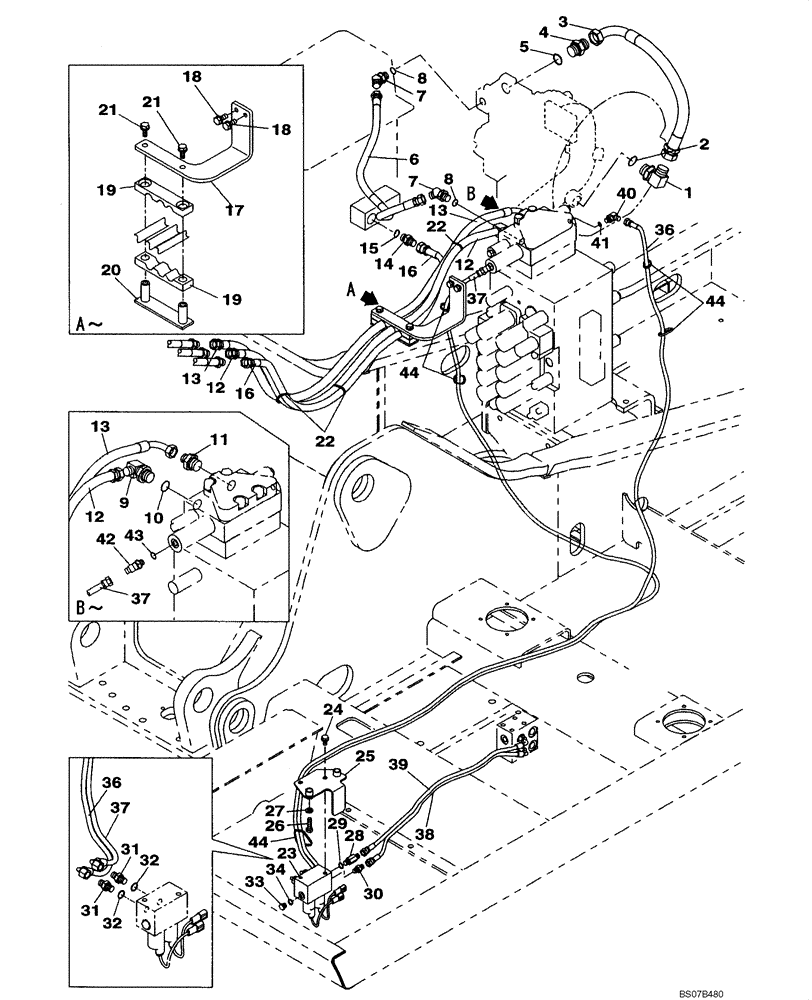

Схема запчастей Case CX210BNLC - (08-39) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS
32
14
36
13
15
41
13
16
28
26
22
5
6
1
25
7
19
18
31
10
13
22
11
43
7
44
29
23
36
44
2
31
24
21
37
20
9
21
16
18
12
27
8
37
37
12
32
33
34
8
38
44
17
3
4
12
30
39
19
40
42

Артикул

Название

Примечание

Количество

1

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 2

1шт.

2

154523A1

O-RING

1шт.

3

KSJ11780

HYDRAULIC HOSE,25.40 mm ID x 530.00 mm

1шт.

4

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 5

1шт.

5

154523A1

O-RING

1шт.

6

HLV0082

HYDRAULIC HOSE,12.70 mm ID x 1250.00 mm

1шт.

7

157585A1

ELBOW

Incl. 8

2шт.

8

154487A1

O-RING

1шт.

9

157936A1

ELBOW

Incl. 10

1шт.

10

154503A1

O-RING

1шт.

11

168988A1

ADAPTER

1шт.

12

KRJ16470

HYDRAULIC HOSE,12.70 mm ID x 1410.00 mm

1шт.

13

KRJ16480

HYDRAULIC HOSE,12.70 mm ID x 1540.00 mm

1шт.

14

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 15

1шт.

15

154487A1

O-RING

1шт.

16

KRJ16490

HYDRAULIC HOSE,12.70 mm ID x 1560.00 mm

1шт.

17

KRJ16070

SUPPORT

1шт.

18

166052A1

BOLT

2шт.

19

KRJ11580

HOSE CLIP

2шт.

20

KRJ11590

SUPPORT

1шт.

21

166052A1

BOLT

2шт.

22

150496A1

MOUNTING CLIP

3шт.

23

KHJ14000

VALVE SECTION

See Figure 08-81

1шт.

24

166351A1

BOLT,Sems, M10 x 20mm

2шт.

25

KHJ15190

SUPPORT

1шт.

26

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

27

150409A1

WASHER

2шт.

28

162554A1

FITTING

Incl. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

30

161841A1

HYD CONNECTOR

1шт.

31

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 32

2шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

159002A1

PLUG

Incl. 34

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

36

KHJ12230

HYDRAULIC HOSE

3450 mm (135-13/16 in)

1шт.

37

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

38

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

39

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

40

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 41

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

42

150933A1

ELBOW

Incl. 43

1шт.

43

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

44

150496A1

MOUNTING CLIP

5шт.

Выбрано товаров: 43
