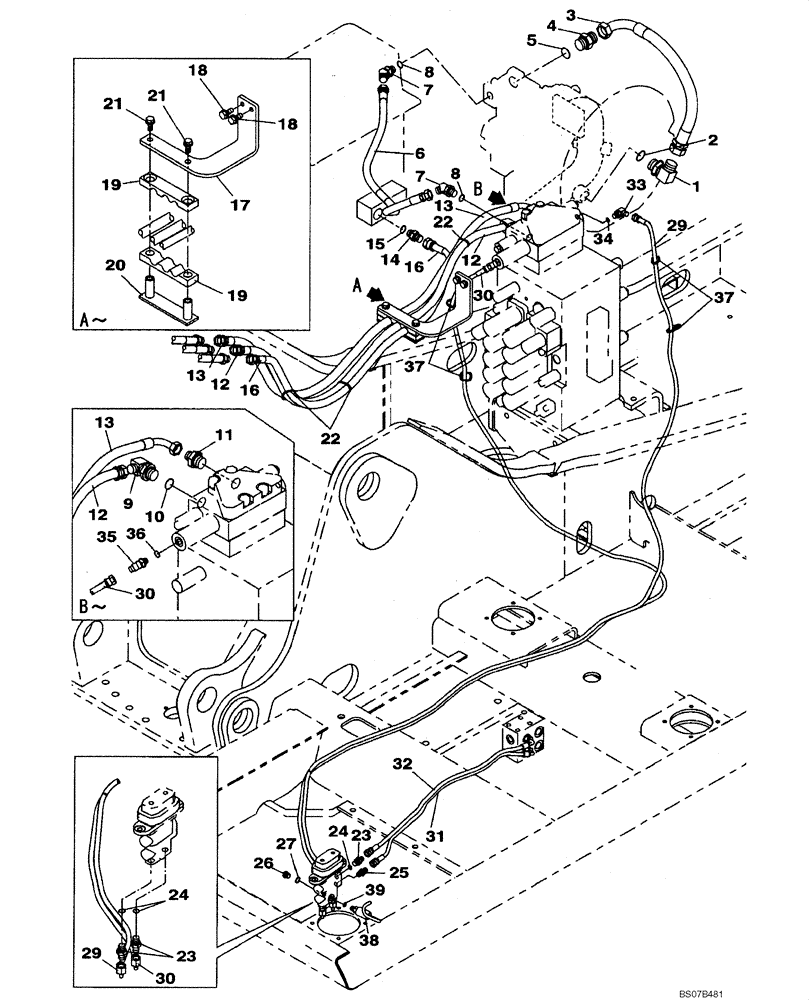

Запчасти Case CX210BNLC (08-38) - HYDRAULICS, AUXILIARY - SECOND ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

1

157581A1

ELBOW,90 Degree, 1" O-Ring x 1"

Incl. 2

1шт.

2

154523A1

O-RING

1шт.

3

KSJ11780

HYDRAULIC HOSE,25.40 mm ID x 530.00 mm

1шт.

4

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 5

1шт.

5

154523A1

O-RING

1шт.

6

HLV0082

HYDRAULIC HOSE,12.70 mm ID x 1250.00 mm

1шт.

7

157585A1

ELBOW

Incl. 8

2шт.

8

154487A1

O-RING

1шт.

9

157936A1

ELBOW

Incl. 10

1шт.

10

154503A1

O-RING

1шт.

11

168988A1

ADAPTER

1шт.

12

KRJ16470

HYDRAULIC HOSE,12.70 mm ID x 1410.00 mm

1шт.

13

KRJ16480

HYDRAULIC HOSE,12.70 mm ID x 1540.00 mm

1шт.

14

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl. 15

1шт.

15

154487A1

O-RING

1шт.

16

KRJ16490

HYDRAULIC HOSE,12.70 mm ID x 1560.00 mm

1шт.

17

KRJ16070

SUPPORT

1шт.

18

166052A1

BOLT

2шт.

19

KRJ11580

HOSE CLIP

2шт.

20

KRJ11590

SUPPORT

1шт.

21

166052A1

BOLT

2шт.

22

150496A1

MOUNTING CLIP

3шт.

23

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 24

3шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

161841A1

HYD CONNECTOR

1шт.

26

159002A1

PLUG

Incl. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

29

KHJ12230

HYDRAULIC HOSE

3450 mm (135-13/16 in)

1шт.

30

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

1шт.

31

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

32

KHJ2088

HOSE

850 mm (33-15/32 in)

1шт.

33

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 34

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

35

150933A1

ELBOW

Incl. 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

150496A1

MOUNTING CLIP

4шт.

38

KHR10820

PRESSURE SWITCH

Incl. 39

1шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
