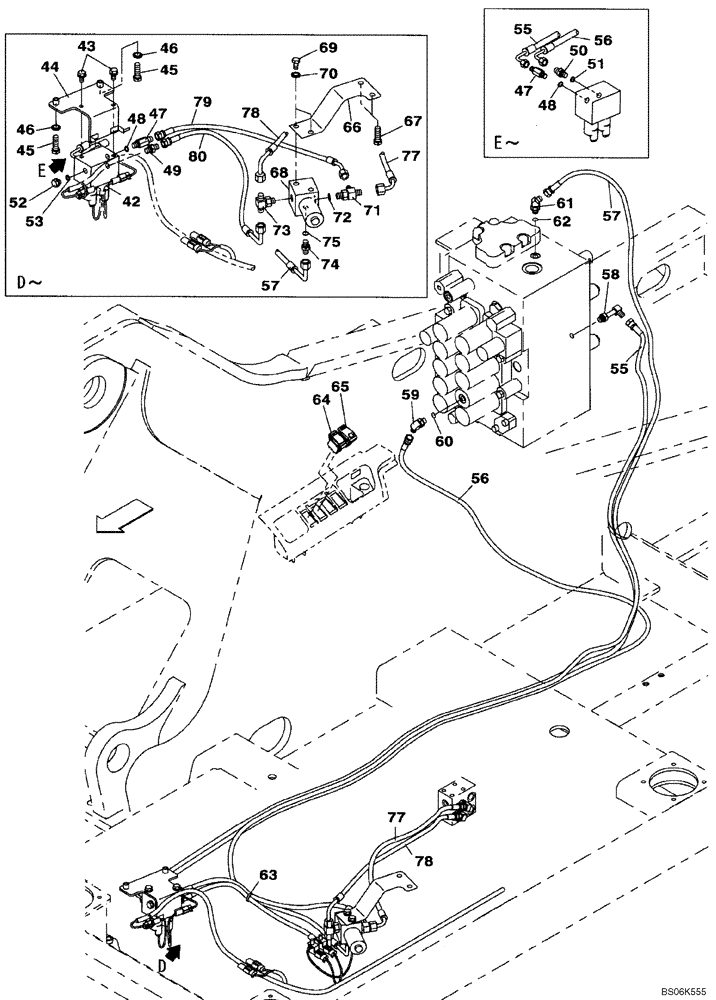

Запчасти Case CX210BNLC (08-31) - HYDRAULICS, AUXILIARY - DOUBLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

42

KHJ14000

VALVE SECTION

See Figure 08-81

1шт.

43

166351A1

BOLT,Sems, M10 x 20mm

2шт.

44

KHJ14680

SUPPORT

1шт.

45

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

46

150409A1

WASHER

2шт.

47

162554A1

FITTING

Incl. 48

2шт.

48

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

49

161841A1

HYD CONNECTOR

1шт.

50

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 51

1шт.

51

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

52

159002A1

PLUG

Incl. 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

KHJ2198

HOSE,6.3mm ID x 2850mm L

2850 mm (112-13/64 in)

1шт.

56

KHJ2165

HOSE

2900 mm (114-3/16 in)

1шт.

57

KHJ12230

HYDRAULIC HOSE

3450 mm (135-13/16 in)

1шт.

58

KHJ1178

ELBOW

1шт.

59

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 60

1шт.

60

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

61

150933A1

ELBOW

Incl. 62

1шт.

62

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

63

150496A1

MOUNTING CLIP

1шт.

64

KHR15020

LIMIT SWITCH,Double-acting

1шт.

65

KHR14460

SWITCH,Low Flow

1шт.

66

KHJ15730

SUPPORT

1шт.

67

166351A1

BOLT,Sems, M10 x 20mm

2шт.

68

162538A1

VALVE

See Figure 08-75

1шт.

69

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

70

183-106VR

SPRING WASHER

2шт.

71

159497A1

TEE

Incl. 72

1шт.

72

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

73

167321A1

TEE

1шт.

74

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 75

1шт.

75

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

77

KHJ2086

HOSE,6.3mm ID x 700mm L

700 mm (27-9/16 in)

1шт.

78

KHJ2036

HOSE

750 mm (29-1/2 in)

1шт.

79

KHJ12100

HYDRAULIC HOSE

520 mm (20-1/2 in)

1шт.

80

KHJ2180

HOSE,6.3mm ID x 500mm L

500 mm (19-11/16 in)

1шт.
