Запчасти Case CX210BNLC (08-29) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

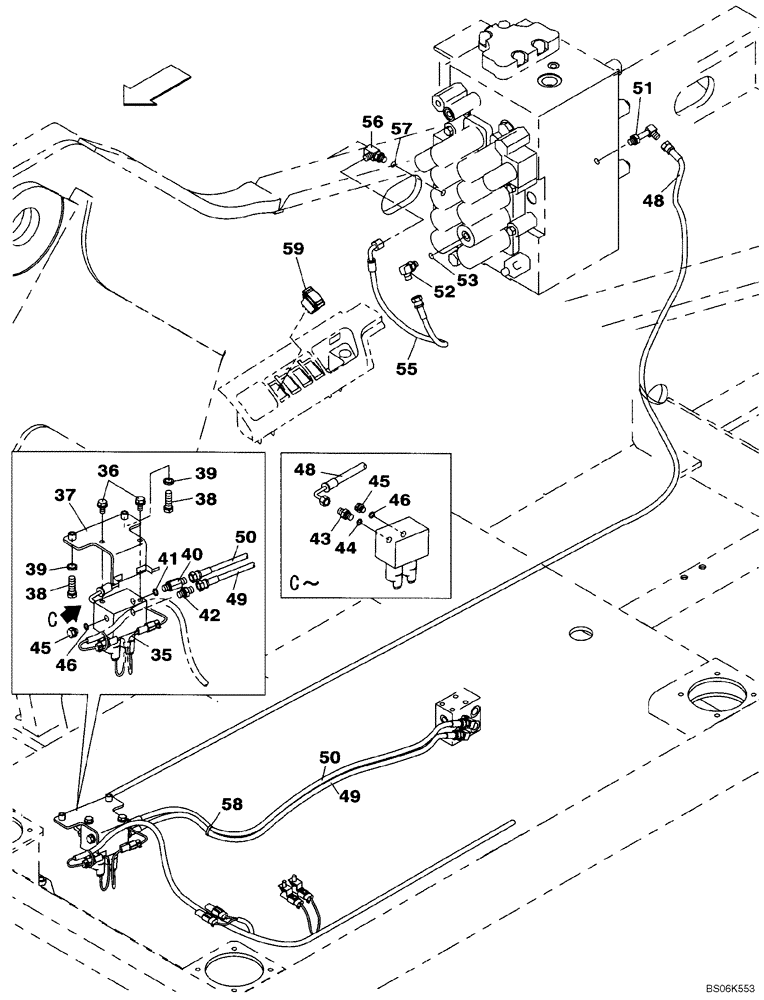

Схема запчастей Case CX210BNLC - (08-29) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS
45
59
43
35
41
39
50
52
56
37
39
36
53
57
48
40
45
42
58
49
50
44
46
46
51
38
48
38
49
55

Артикул

Название

Примечание

Количество

35

KHJ14000

VALVE SECTION

See Figure 08-81

1шт.

36

166351A1

BOLT,Sems, M10 x 20mm

2шт.

37

KHJ14680

SUPPORT

1шт.

38

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

39

150409A1

WASHER

2шт.

40

162554A1

FITTING

Incl. 41

1шт.

41

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

42

161841A1

HYD CONNECTOR

1шт.

43

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 44

1шт.

44

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

45

159002A1

PLUG

Incl. 46

2шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

48

KHJ2198

HOSE,6.3mm ID x 2850mm L

2850 mm (112-13/64 in)

1шт.

49

KHJ15180

HYDRAULIC HOSE

950 mm (37-3/8 in)

1шт.

50

KHJ2049

HOSE

900 mm (35-7/16 in)

1шт.

51

KHJ1178

ELBOW

1шт.

52

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 53

1шт.

53

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

55

KHJ2309

HOSE

550 mm (21-5/8 in)

1шт.

56

KHJ2773

TEE

Incl. 57

1шт.

57

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

58

150496A1

MOUNTING CLIP

1шт.

59

KHR14060

SWITCH,Breaker

1шт.

Выбрано товаров: 23
