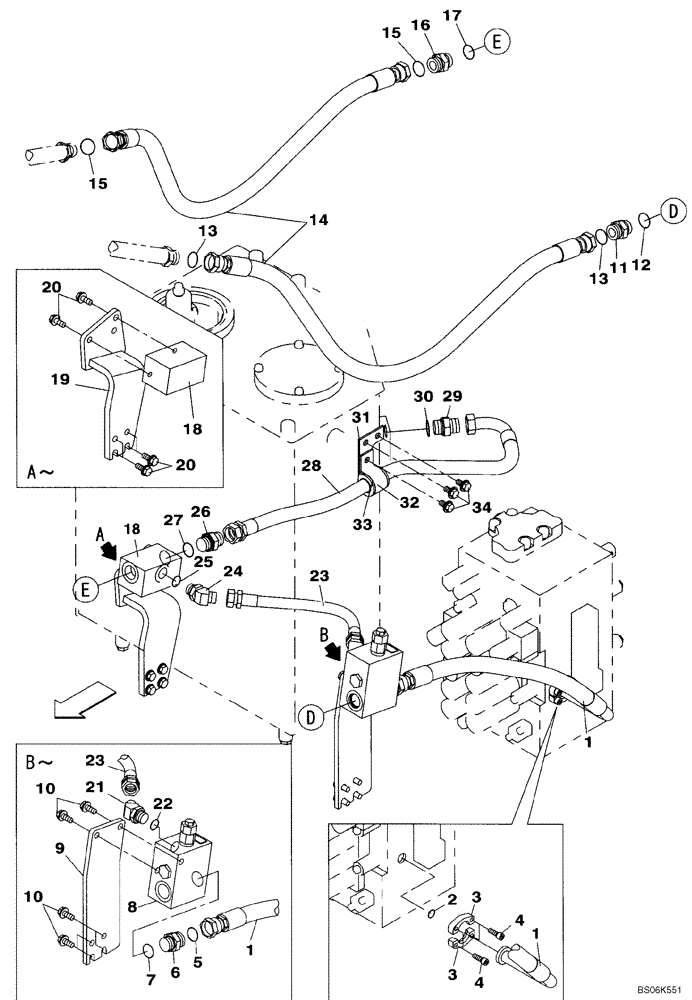

Запчасти Case CX210BNLC (08-28) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, HAND OPERATED (08) - HYDRAULICS

1

KRJ11500

HYDRAULIC HOSE,25.40 mm ID x 860.00 mm

1шт.

2

155211A1

O-RING

1шт.

3

153459A1

FLANGE

Split

2шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

5

KHJ1361

O-RING,0.07" Thk x 0.926" ID

1шт.

6

KHJ1349

ADAPTER

Incl. 7

1шт.

7

154523A1

O-RING

1шт.

8

KHJ15050

VALVE PRESSURE RELIE

See Figure 08-76

1шт.

9

KRJ11470

SUPPORT

1шт.

10

166352A1

BOLT

6шт.

11

KHJ1349

ADAPTER

Incl. 12

1шт.

12

154523A1

O-RING

1шт.

13

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

14

KRJ11510

HYDRAULIC HOSE,25.40 mm ID x 1360.00 mm

2шт.

15

KHJ1361

O-RING,0.07" Thk x 0.926" ID

2шт.

16

KHJ1349

ADAPTER

Incl. 17

1шт.

17

154523A1

O-RING

1шт.

18

KRJ16400

MANIFOLD VALVE

1шт.

19

KRJ16050

SUPPORT

1шт.

20

166352A1

BOLT

6шт.

21

157586A1

ELBOW

Incl. 22

1шт.

22

154503A1

O-RING

1шт.

23

KRJ11540

HYDRAULIC HOSE,19.00 mm ID x 670.00 mm

1шт.

24

157586A1

ELBOW

Incl. 25

1шт.

25

154503A1

O-RING

1шт.

26

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 27

1шт.

27

154523A1

O-RING

1шт.

28

KRJ16340

HYDRAULIC HOSE,25.40 mm ID x 1080.00 mm

1шт.

29

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

Incl. 30

1шт.

30

154523A1

O-RING

1шт.

31

KRJ16280

SUPPORT

1шт.

32

KBJ11860

SUPPORT

1шт.

33

KHJ2680

COLLAR CLAMP

1шт.

34

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

3шт.
