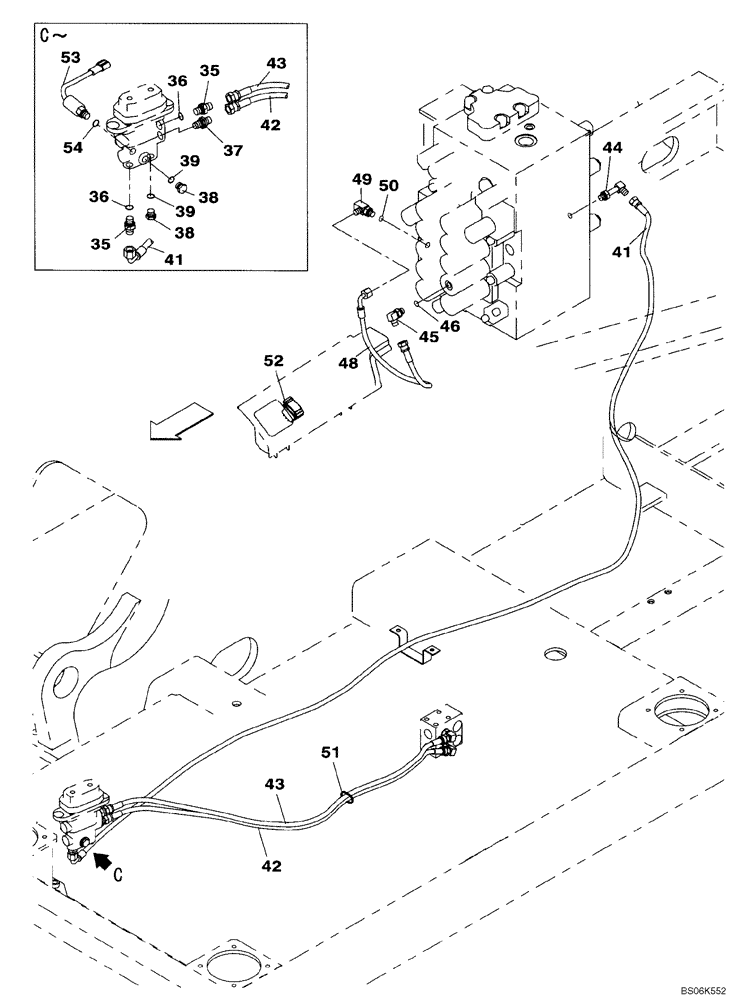

Запчасти Case CX210BNLC (08-27) - HYDRAULICS, AUXILIARY - SINGLE ACTING CIRCUIT, PEDAL ACTIVATED (08) - HYDRAULICS

35

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 36

2шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

161841A1

HYD CONNECTOR

1шт.

38

159002A1

PLUG

Incl. 39

2шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

KHJ2165

HOSE

2900 mm (114-11/64 in)

1шт.

42

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

43

KHJ2050

HOSE,6.3mm ID x 1000mm L

1шт.

44

KHJ1178

ELBOW

1шт.

45

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 46

1шт.

46

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

48

KHJ2309

HOSE

550 mm (21-5/8 in)

1шт.

49

KHJ2773

TEE

Incl. 50

1шт.

50

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

51

150496A1

MOUNTING CLIP

1шт.

52

KHR14060

SWITCH,Breaker

1шт.

53

KHR10820

PRESSURE SWITCH

Incl. 54

1шт.

54

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
