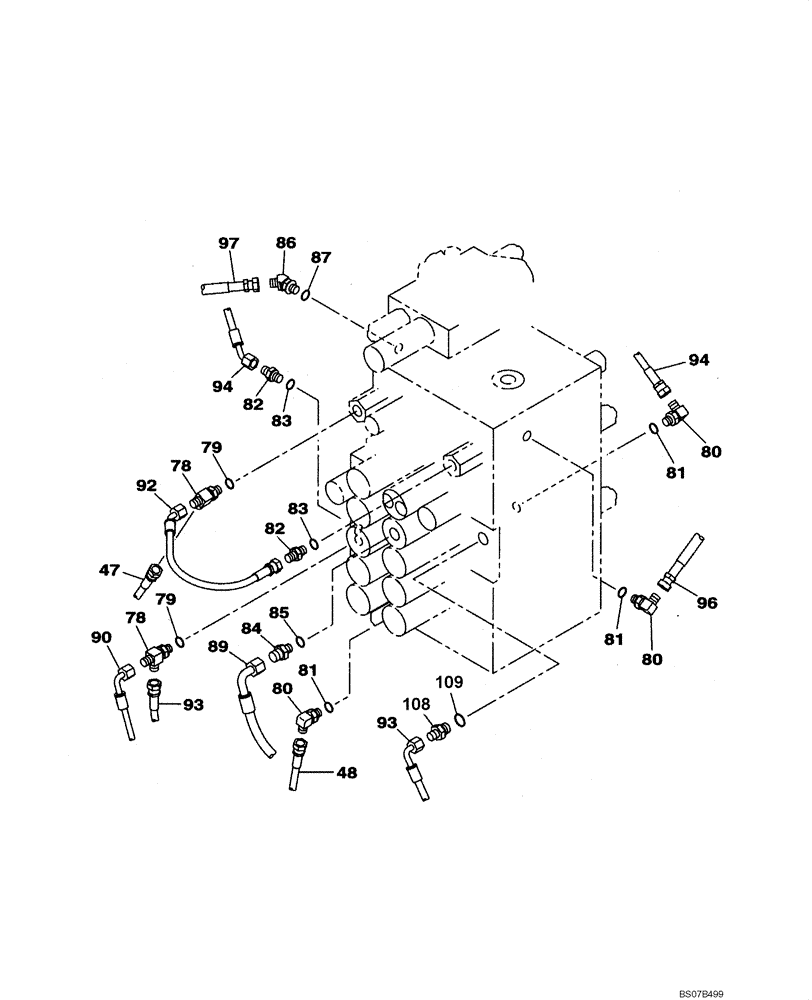

Запчасти Case CX210BNLC (08-25) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

47

KHJ2061

HOSE

1750 mm (68-7/8 in)

1шт.

48

KHJ2477

HOSE

1600 mm (63 in)

1шт.

78

159497A1

TEE

Incl. 79

2шт.

79

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

80

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 81

3шт.

81

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

82

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 83

2шт.

83

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

84

152747A1

ADAPTER

Incl. 85

1шт.

85

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

86

150933A1

ELBOW

Incl. 87

1шт.

87

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

89

KHJ2106

HOSE

1600 mm (63 in)

1шт.

90

KHJ11170

HYDRAULIC HOSE,6.35 mm ID x 1400.00 mm

1шт.

92

KHJ11180

HYDRAULIC HOSE,6.35 mm ID x 430.00 mm

350 mm (13-7/8 in)

2шт.

93

KHJ2181

HOSE

580 mm (22-13/16 in)

1шт.

94

KHJ2244

HOSE

600 mm (23-5/8 in)

1шт.

96

KHJ2725

HYDRAULIC HOSE,6.30 mm ID x 2000.00 mm

1шт.

97

KHJ1228

HYDRAULIC HOSE,6.35 mm ID x 650.00 mm

1650 mm (65 in)

1шт.

108

153378A1

ADAPTER

Incl. 109

1шт.

109

154475A1

O-RING

1шт.
