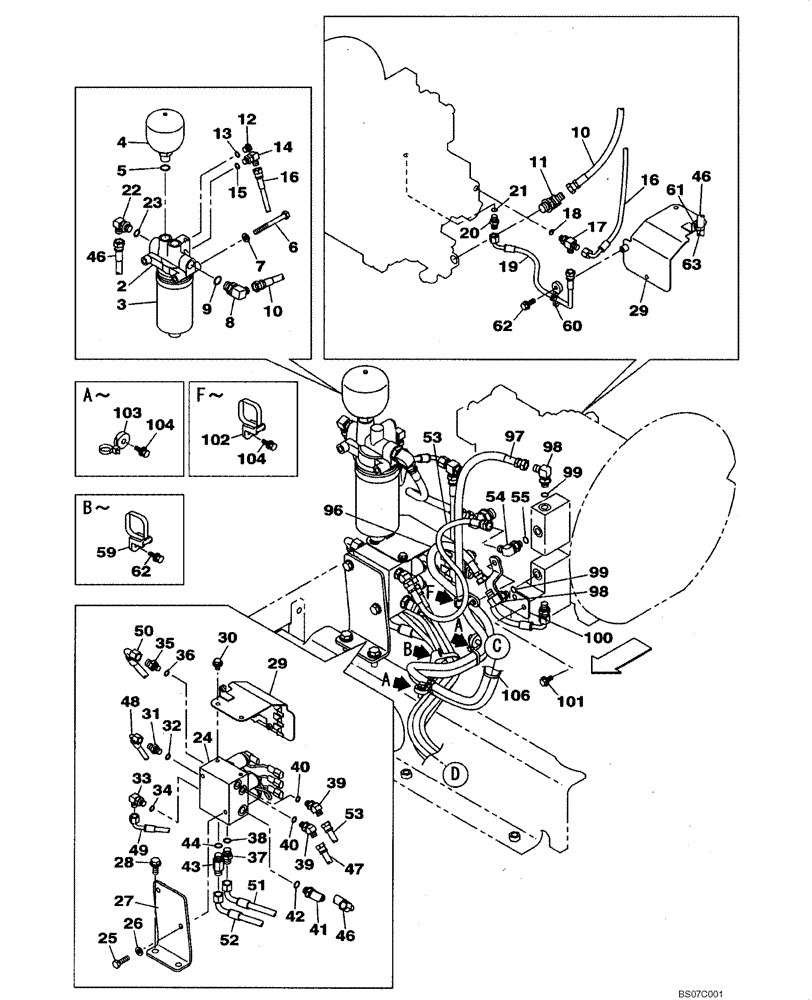

Запчасти Case CX210BNLC (08-23) - HYDRAULICS - PILOT PRESSURE, RETURN LINES (08) - HYDRAULICS

KHJ17710

FILTER ASSY

Incl. 2 - 5, Replaces KHJ10930

1шт.

2

KHJ17720

FILTER HEAD

Incl. 3, Replaces KHJ10940

1шт.

3

KHJ17730

HYDRAULIC OIL FILTER

Replaces KHJ10950

1шт.

4

KHJ2359

ACCUMULATOR

Incl. 5

1шт.

5

154487A1

O-RING

1шт.

6

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

2шт.

7

150409A1

WASHER

2шт.

8

157935A1

ELBOW

Incl. 9

1шт.

9

154487A1

O-RING

1шт.

10

KHJ1306

HYDRAULIC HOSE,9.52 mm ID x 550.00 mm

1шт.

11

KHJ1254

ELBOW

1шт.

12

159002A1

PLUG

Incl. 13

1шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 15

1шт.

15

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

16

KHJ2342

HOSE

380 mm (15 in)

1шт.

17

159497A1

TEE

Incl. 18

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

19

KHJ2239

HOSE,520.00 mm

520 mm (20-1/2 in)

1шт.

20

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

22

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 23

1шт.

23

154475A1

O-RING

1шт.

24

KHJ14520

SOLENOID VALVE

See Figure 08-73

1шт.

25

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

26

150409A1

WASHER

2шт.

27

KHJ15280

SUPPORT

1шт.

28

166352A1

BOLT

2шт.

29

KHJ15270

COVER

1шт.

29

KRJ34630

COVER

Replaced KHJ16220

1шт.

30

166345A1

BOLT

2шт.

31

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl. 32

3шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

33

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 34

1шт.

34

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

35

152747A1

ADAPTER

Incl. 36

1шт.

36

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

37

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Incl. 38

1шт.

38

154475A1

O-RING

1шт.

39

150933A1

ELBOW

Incl. 40

2шт.

40

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

41

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Incl. 42

1шт.

42

154475A1

O-RING

1шт.

43

159226A1

ADAPTER

Incl. 44

1шт.

44

154475A1

O-RING

1шт.

46

KHJ2809

HOSE,9.5 mm ID x 600.00 mm

600 mm (23-5/8 in)

1шт.

47

KHJ2061

HOSE

1750 mm (68-7/8 in)

1шт.

48

KHJ2477

HOSE

1600 mm (63 in)

1шт.

49

KHJ2166

HOSE,6.3mm ID x 2300mm L

2300 mm (90-9/16 in)

1шт.

50

KHJ14900

HYDRAULIC HOSE,9.52 mm ID x 2600.00 mm

1шт.

51

KHJ2369

HOSE,9.5 mm ID x 2250.00 mm

2250 mm (88-9/16 in)

1шт.

52

KHJ14410

HYDRAULIC HOSE,9.52 mm ID x 1150.00 mm

1шт.

53

KHJ2240

HOSE

450 mm (17-3/4 in)

1шт.

54

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 55

1шт.

55

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

59

KHR2581

CLAMP

1шт.

60

KHR2584

CLAMP

1шт.

61

KHR10220

MOUNTING CLIP

1шт.

62

KHJ1215

BOLT,Spcl

2шт.

63

150496A1

MOUNTING CLIP

1шт.

96

KHJ2725

HYDRAULIC HOSE,6.30 mm ID x 2000.00 mm

1шт.

97

KHJ1228

HYDRAULIC HOSE,6.35 mm ID x 650.00 mm

1650 mm (65 in)

1шт.

98

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Incl. 99

2шт.

99

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

100

KRJ18130

SUPPORT

1шт.

101

166350A1

BOLT

2шт.

102

KHR2581

CLAMP

1шт.

103

KHR2584

CLAMP

2шт.

104

KHJ1215

BOLT,Spcl

3шт.

106

150496A1

MOUNTING CLIP

1шт.
